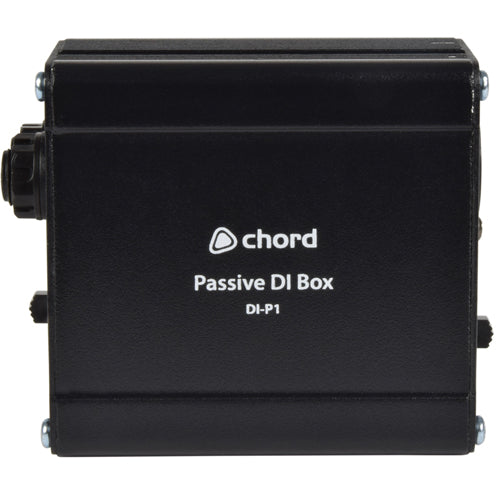

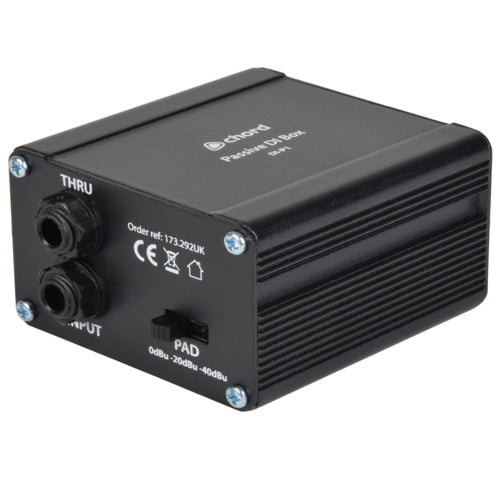

Passive DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Equipped with 3 pad settings, RF/mains filter and selector for ground lift with or without filter.

Ground float option for ground lift with RF/mains filter

Ground lift option isolates signal ground without filter

3 pad settings for level matching

Specifications:

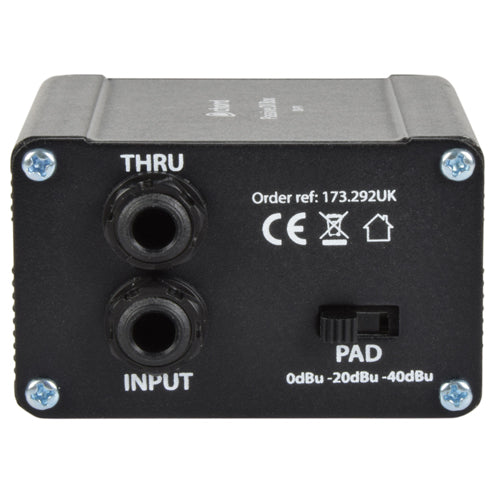

Input: 6.3mm jack (unbalanced)

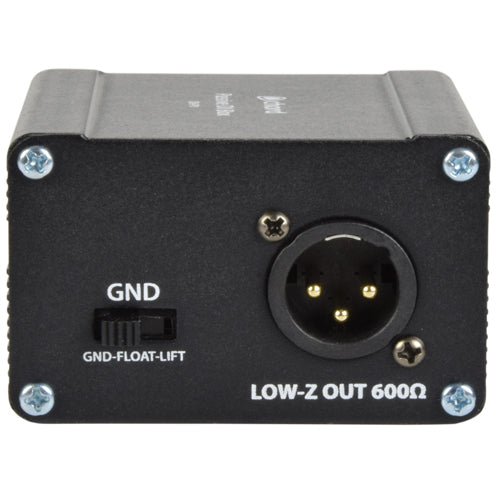

Outputs: XLRM (balanced), 6.3mm jack through (unbalanced)

Input impedance: >100k Ohms

Output impedance: 600 Ohms

Controls: 0/-20/-40dBu pad & Ground-Float-Lift switch

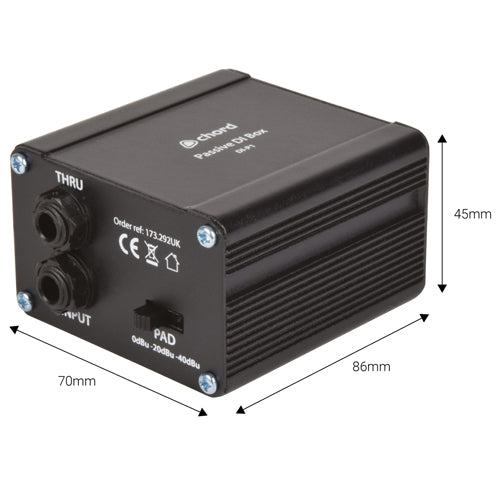

Dimensions: 86 x 70 x 45mm

Weight: 234g
