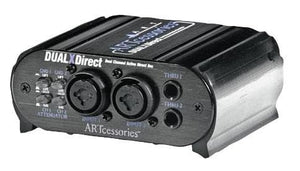

The DUALXDirect provides two independent high quality active interfaces that let you connect instrument, line, or speaker level signals to a mixer or other balanced inputs. Each of the high impedance ¼"/XLR inputs combo jacks are buffered and converted by very low noise active electronics into an isolated, balanced, low impedance signal output. The DUALXDirect has an extremely flat and wide frequency response and can handle high signal levels. This gives the DUALXDirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.

Specifications:

Fully active design

Phantom voltage or 9V battery powered

Converts high-impedance balanced/unbalanced inputs into 600R balanced outputs

Switchable ground lift

Rugged extruded aluminium case

Input Connections: 2x XLR female/6.35mm (¼") TRS combo connectors

Thru Connections: 2x 6.35mm (¼") TRS

Output Connections: 2x XLR male balanced

Frequency Response: 10Hz-100kHz, ±0.5dB

Maximum Input Level: +4, +34dBu

Maximum Output Level: +6dBu (battery powered), +14dBu (phantom powered)

Input Attenuation: Switchable 0, -30dB

Dynamic Range: >100dB (typical)

Channel Separation: >80dB (typical)

THD: <0.05% (typical)

Power: 9V PP3 or 18-48V DC @ 6.4mA

Dimensions (WxHxD): 117x47x99mm

Weight: 380g
