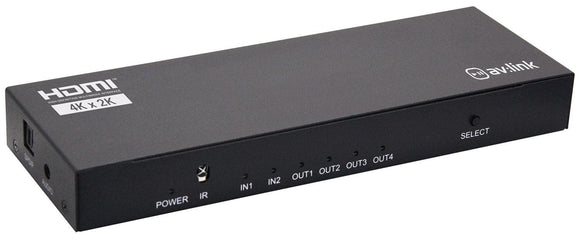

AV:LINK HSS24 - 4K HDMI Switch / Splitter 2x4

AV:LINK HSS24 - 4K HDMI Switch / Splitter 2x4

  • £53.99
    Unit price per
Shipping calculated at checkout.


A 4K HDMI splitter to switch between 2 source devices, with up to 4 display outputs. Use with HDMI cables of a combined 20m per output for HD resolution, or a combined 10m per output for 4K resolution, without signal loss. SPDIF and 3.5mm jack outputs allow the audio signal of the selected source device to simultaneously be channelled through a separate sound system; ideal for hospitality and entertainment venues. Supplied with IR remote to switch between sources.

Specifications:

Simple connection and operation

Gold plated HDMI connectors for optimum signal transfer

Supports HDMI v2.0a resolutions up to 3840 x 2160 @ 60Hz

Supports DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD audio formats

Digital SPDIF and analogue 3.5mm jack audio outputs

Ideal for entertainment, hospitality and other commercial venues with multiple displays

IR remote and UK power adaptor supplied

HDMI version: v2.0a

Resolution: Up to 3840 x 2160 @ 60Hz

Display colours: 8/10/12bit deep colour

HDCP version: 1.4 (input only)

Audio format: DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD

Max. bandwidth: 600MHz

Max. baud rate: 6Gbps

Transmission distance: 20m max HD or 10m max 4K (20m input/output @ 1080p and 10m input/output @ 4K)

Max. working current: 500mA

Operating temperature range: -15°C ~ +55°C

Battery : remote: CR2025 (supplied)

Dimensions: 200 x 70 x 25mm

Weight: 305g
