CHORD NU1-N863.1 - UHF Wireless Beltpack Microphone System

CHORD NU1-N863.1 - UHF Wireless Beltpack Microphone System

  • £97.72
    Unit price per
Shipping calculated at checkout.

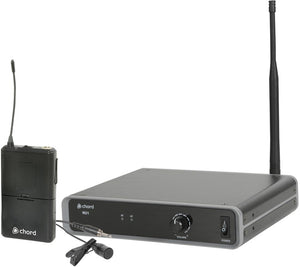

A wireless UHF microphone system with fixed/single channel beltpack transmitter, lavalier microphone, neckband microphone and half rack-width receiver. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories.


Single channel UHF frequency

Pilot tone & mute circuit for stable signal

Licence free operation in EU

Lavalier and neckband microphones with 3.5mm mono jack connectors (threaded)

Rack-mounting accessories included

Supplied with mains adaptor and 2x AA batteries

Operating frequency: 863.1MHz

Operating range: 60m

Frequency response: 50Hz-18kHz ±1dB

S/N Ratio: >105dB

THD: <0.5% @ 1kHz

Image rejection: >85dB

Output impedance: 2.2 kOhms

Output level: 400mV (balanced XLR), 200mV (unbalanced Jack)

Batteries: 2x AA (for beltpack transmitter - included)

Power supply: 12-18V DC, 350mA (mains adaptor included)

Receiver dimensions (WxHxD): 198x44x190mm

Receiver weight: 710g

Beltpack dimensions (WxHxD): 68x205x25mm

Beltpack weight: 76g (no battery)


UHF receiver, Beltpack transmitter, Lavalier microphone, Neckband microphone, 2x AA batteries, UHF antenna, Antenna lead, 6.35mm Mono jack lead, Rack-mounting kit, Mains power adaptor.
