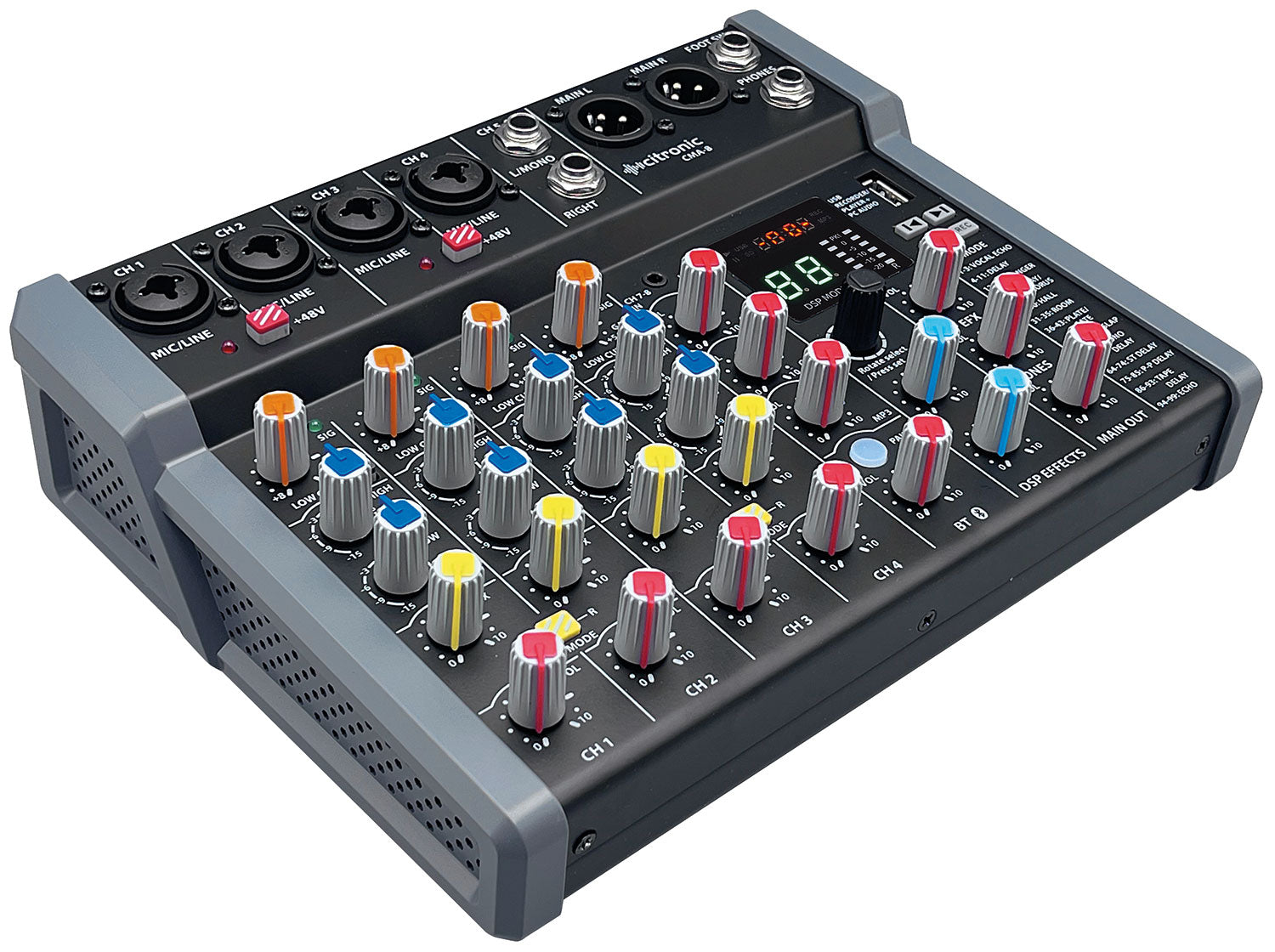

Citronic CMA-8 - 6 Channel Mixer with DSP, USB Play/Record/PC and Bluetooth

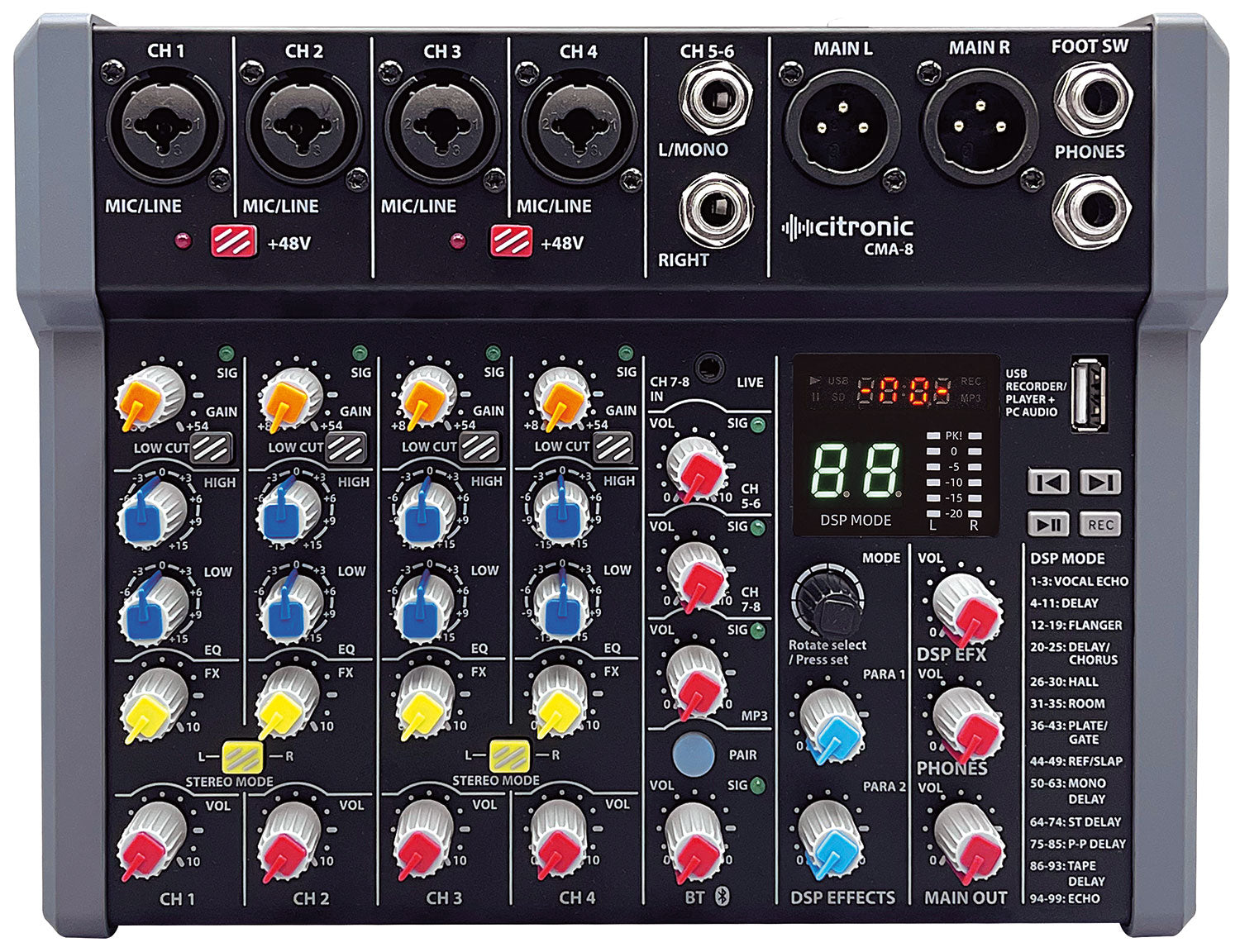

Compact format audio mixer with 6 mono input channels, a stereo line input and a further minijack stereo input. Each mono mic/line channel has a combo XLR/jack input with +48V phantom power switchable in pairs for the XLR inputs. Each mic/line channel has a Gain control for matching the input source and a low-cut switch to filter out rumble or handling noise from microphones. Each mono channel also has High/Low EQ controls and an FX level control. Pairs of mono channels can be linked to act as a stereo left + right pair as required. The onboard foot-switchable DSP effects engine has 99 presets for delay, reverb and modulation effects, each of which can be adjusted using two parameter controls. An onboard Bluetooth receiver has an illuminated pairing button and independent volume control. The USB type-A port on the top panel is for playback of audio files or can be used to record the main outputs to a USB storage device or as an external audio device when connected to a laptop. Output is delivered to a pair of balanced XLR connectors to provide low noise operation for high quality studio or live performances.
DSP effect section with 99 adjustable presets
USB mp3 audio player/recorder
Bluetooth receiver with independent volume control
PC/Mac audio device and aux power via USB A connection
Switchable +48V phantom power
Mono mic line inputs can be paired to stereo
Balanced XLR/Jack mono inputs
Stereo line input jacks and stereo minijack input

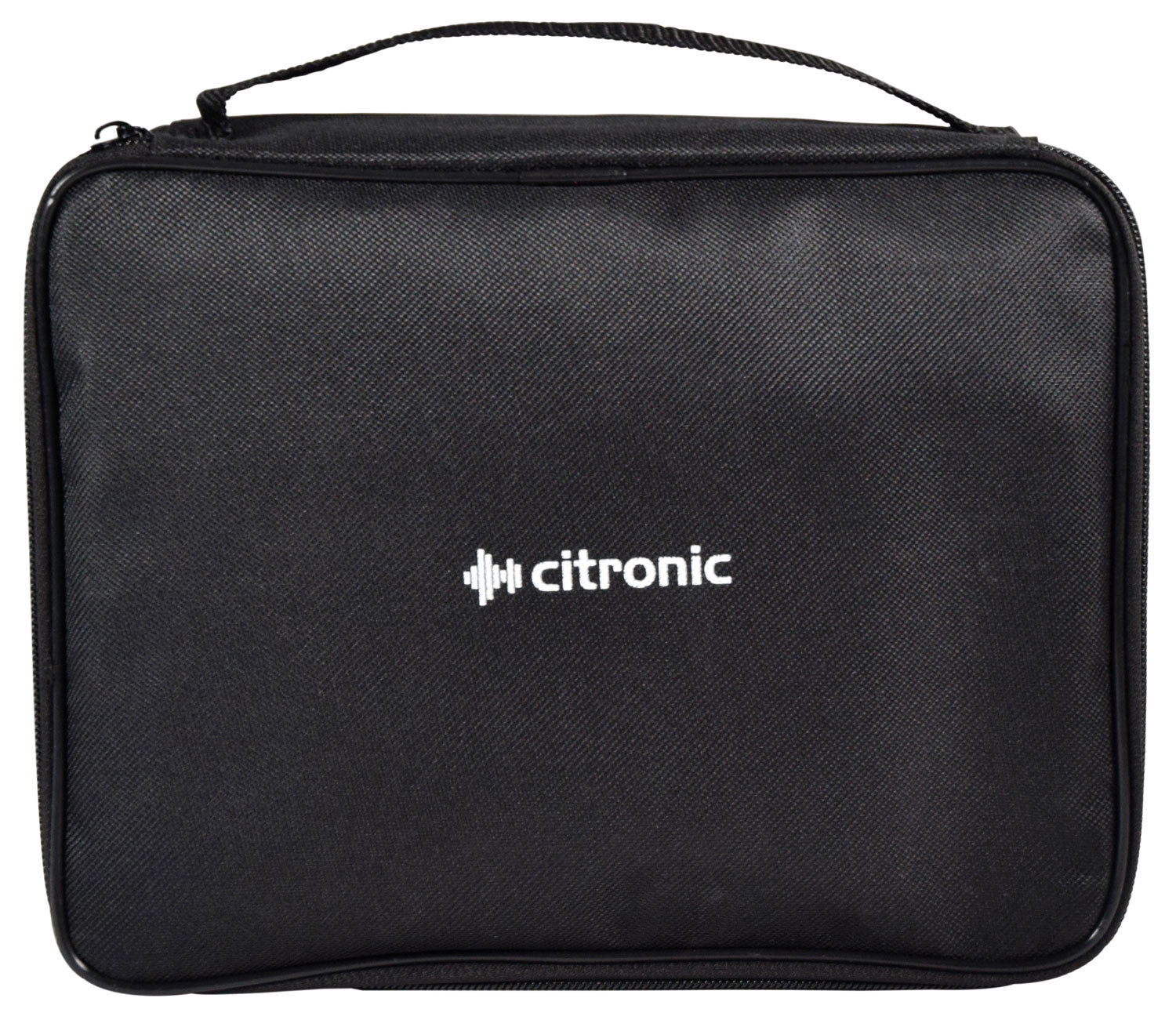

Supplied in a padded transit bag

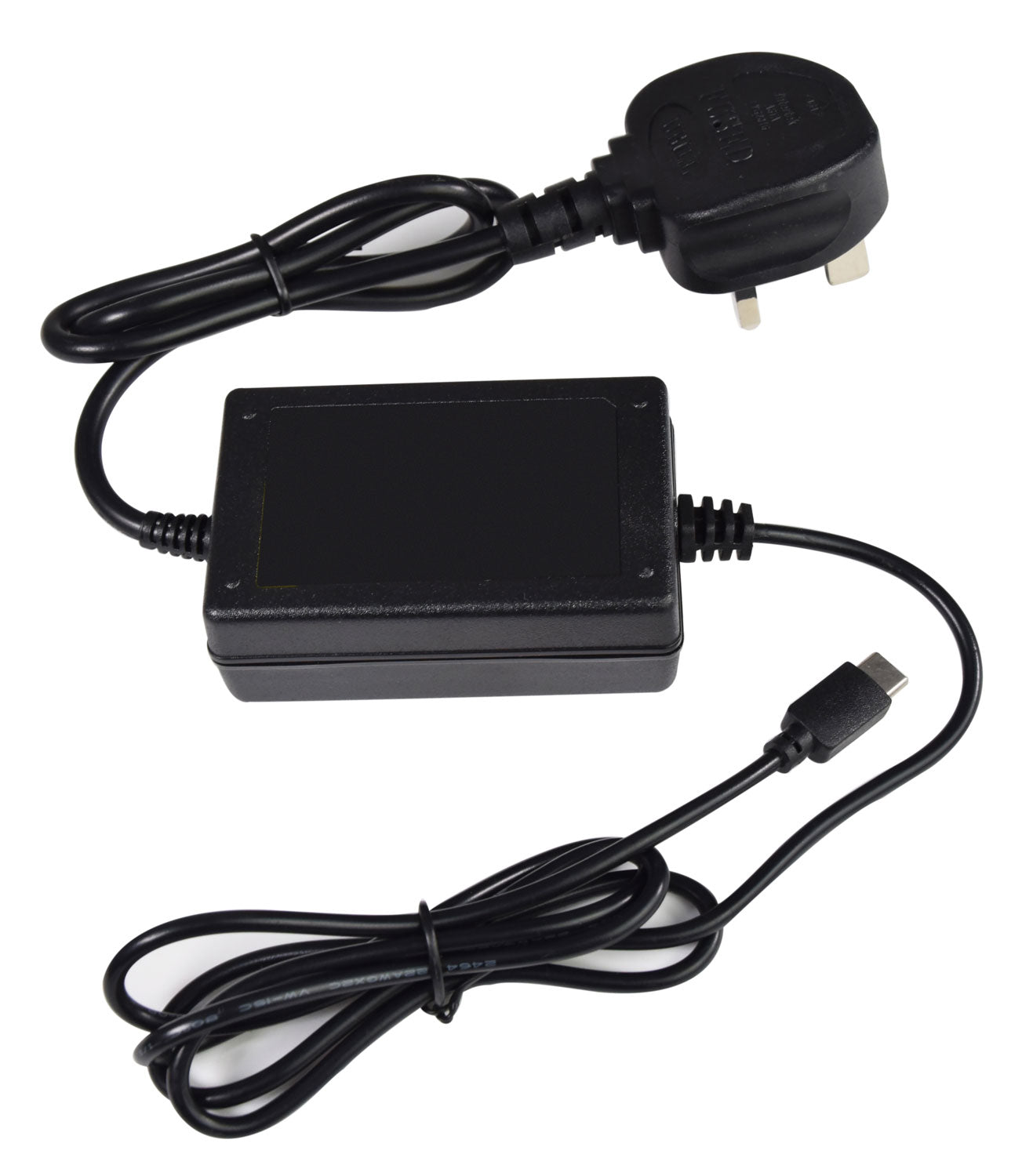

USB type-C power supply
Specifications:
Weight: 1.125kg
Dimensions: 232 x 183 x 60mm
Inputs: 4 x combo XLR/jack + stereo L+R 6.3mm + stereo 3.5mm
Power supply: 5Vdc 1A min. (USB-C adaptor included)
Power consumption max.: 5W
Effects: 99 program DSP (2 parameter controls)
DSP sample rate: 48khz (24-bit)
Audio source: Bluetooth receiver, USB mp3 player/recorder
Bluetooth version: v5.1 (+BR+EDR+BLE)
USB version: v1.1 audio (mp3/wav/ape/flac)
EQ: low: ±15dB @ 80Hz
EQ: high: ±15dB @ 12kHz
Phantom power: +48V switchable in pairs (XLR inputs only)
Frequency response: 20Hz - 22kHz (±1dB)
Input level: Mic +10dBu max. / Line +22dBu max.
Input impedance: Balanced XLR 2k Ohm, Balanced TRS jack 10k Ohm
THD +N: <0.05% @ 1kHz
Noise: EIN -122dBu (22Hz - 22kHz)
CMRR: >75dB (Mic 1kHz)
Sensitivity: XLR -60 to +10dBu, TRS jack -20 to +20dBu, Stereo -20 to +14dBu
Crosstalk : stereo: >80dB (1kHz fader shutoff)
Outputs: Left + Right balanced XLR, Headphones 6.3mm jack
Max. output level: XLR +22dBu, TRS +20dBu
