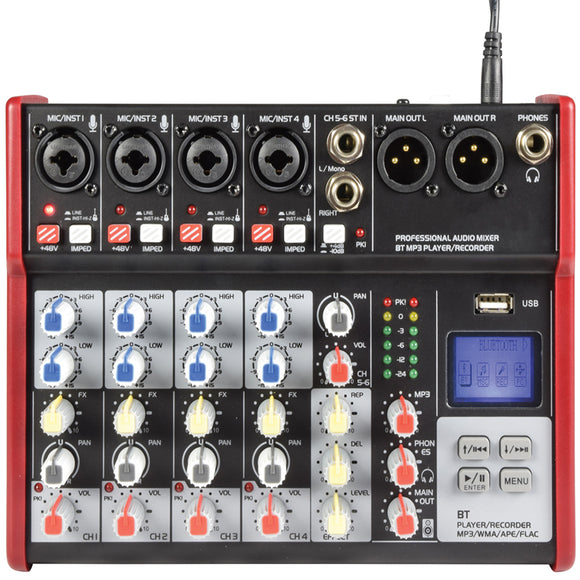

Compact format audio mixer with 4 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via BT wireless link. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.

Specifications:

Integral USB multi-format audio player

BT wireless connectivity

Digital delay effect for vocals or instruments

Individually switchable +48V phantom power

Built in record function

Supplied with DC power adaptor

Power supply: 5Vdc 1A (adaptor included)

Power consumption max: 5W

Gain: -14 to +40dB

EQ low: ±15dB @ 80Hz

EQ high: ±15dB @ 12kHz

Phantom power: +48V individually switchable (XLR inputs only)

Input impedance: mic 2k Ohms

Input impedance: instrument 1M Ohms

Input impedance: line 20k Ohms

Audio source: Internal USB player/recorder & BT receiver

Audio format USB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s)

Bluetooth version: 2.1 + EDR

Frequency response: 20Hz - 20kHz (±0.5B)

THD: +N<0.03% @ 1kHz

Dynamic range: 102dB

Crosstalk : stereo 92dB

Output: Left + Right balanced XLR

Output impedance: 120 Ohms

Max. output level: 3Vrms

Inputs: 4 x combo XLR/jack + stereo jack

Dimensions: 220 x 165 x 66mm

Weight: 1.17kg
