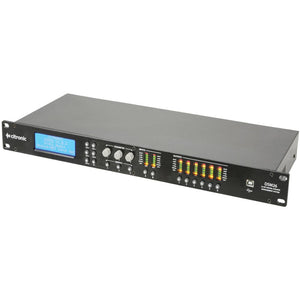

Digital speaker management system which incorporate crossovers, EQ and limiters for multi-amplifier and speaker setups. These units enable the sound system designer to accurately control the inputs for each power amplifier, providing an ideal matched output suited to each speaker enclosure and its surroundings. A 96kHz 32-bit floating point DSP processor has been utilised to ensure professional quality resolution, controlled either directly via the front panel or USB using the included software. Control can also be distributed through LAN by connecting a local network to the rear panel RJ45 connector, enabling remote speaker setups throughout a building. A high quality speaker management system, which is straightforward enough to use for basic PA systems, yet with enough features to satisfy the most demanding sound reinforcement applications.

Specifications:

Inputs: 8-band shelving or parametric EQ

Inputs: Phase and Gain correction

Outputs: Crossover types: L-R / Bessel / Butterworth

Outputs: 8-band parametric EQ

Outputs: Adjustable Limiter

All inputs/outputs independently controlled

USB interface with PC software included

Network connectivity for remote control

Software included for Win XP (PIII 500, 128MB RAM) or higher

Inputs: 2 balanced XLR or AES digital

Outputs: 6 balanced XLR

Power Supply: 115/230Vac, 50/60Hz (IEC)

Power Consumption: <25W

Fuse: T315mA

Crossover: HPF + LPF fully programmable per output

Filter Type: Linkwitz-Riley; Bessel; Butterworth.

PC Com Port: USB and LAN (RJ45)

CMRR: 65dB (50Hz-10kHz)

Input/Output Polarity: In phase (+) or reverse (-)

Input EQ: 8-band parametric EQ

Input Noise Gate: -120dBu to +10dBu

Processor: 96kHz, 32-bit floating point DSP

Mute: Any input or output channel

Limiter: 1 per output (adjustable)

Output EQ: 8-band: Hi/Lo-shelf or Para

Delay: 0-650ms per output

Frequency Response: 20Hz-20kHz

Input Impedance: Balanced >10k Ohms

Output Impedance: Balanced <60 Ohms

Dimensions: 482 x 44 x 220mm

Weight: 3.19kg
