Citronic U-PAD -  U-PAD Compact Mixer with USB Interface

Citronic U-PAD - U-PAD Compact Mixer with USB Interface

  • £64.95
    Unit price per
Shipping calculated at checkout.

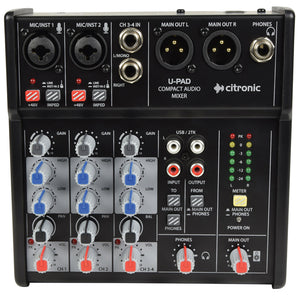

Compact audio mixer with 2 mono inputs and a stereo line input. Both mono channels have a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR connector. High/Low EQ and Pan controls are present on all mono and stereo input channels and a digital input from USB can be routed to main output or phones for monitoring. Analogue output is delivered on a pair of balanced XLR connectors and digitally to the USB for recording. When powered from a laptop USB port, the U-PAD offers high quality recording capability in any environment, even on location.

Specifications:

High quality digital stereo input and output via USB

Studio quality balanced analogue inputs & outputs

Individually switchable +48V phantom power

Supplied with USB lead for power and PC/Mac connection

Power supply: 5.5Vdc (USB)

Gain: -14 to +40dB

EQ: low: ±15dB @ 80Hz

EQ: high: ±15dB @ 12kHz

Phantom power; +48V individually switchable (XLR inputs only)

Input impedance : mic: 2k Ohms

Input impedance : instrument: 1M Ohms

Input impedance : line: 20k Ohms

Frequency response: 20Hz - 20kHz (±0.5B)

USB computer interface: Duplex stereo in/out AD/DA

Sampling format: 24-bit, 96kHz max.

THD +N: <0.03% @ 1kHz

Dynamic range: 102dB

Crosstalk : stereo: 92dB

Output: Left + Right balanced XLR (analogue)

Output impedance: 120 Ohms

Dimensions: 171 x 166 x 66mm

Weight: 900g
