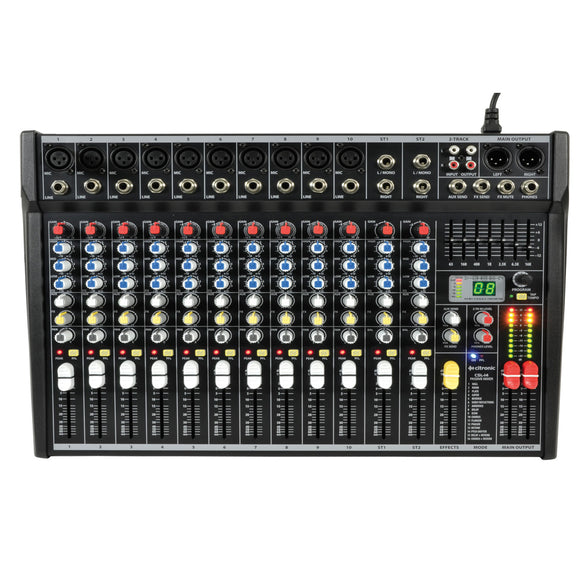

CSL-14 - 14 Channel Compact Mixing Console with DSP

  • £223.29
    Unit price per
Shipping calculated at checkout.

Compact mixing consoles with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. Designed primarily for venues and stage applications, these models offer a compact and comprehensive solution for mobile PA, bars and special events.


24-bit 16 program DSP effects

48V phantom power for XLR inputs

3-band EQ per channel

7-band global graphic EQ

IEC mains powered

Balanced main outputs

Power Supply: 230Vac, 50Hz (IEC)

Phantom Power: +48V (XLR inputs)

Power Consumption: 25W

Fuse: T1AL

Input Level: +24dBu

Output Level: line+26dBu

Frequency Response: 20Hz-30kHz (0.5dB)

CMRR: >74dB (mic 1kHz)

THD: +N<0.01% (channel to main out)

Crosstalk: >85dB (fader mute), >82dB (channel)

Noise RMS: 22Hz-22kHz-122dBu (EIN), -82dBu (mix)

EQ: high 12kHz ±15dB shelving

EQ: mid 2.5kHz ±15dB band pass

EQ: low 80Hz ±15dB shelving

Input Impedance: mic (balanced)2k Ohms

Input Impedance: line (balanced)10k Ohms

Sensitivity: mic-60 to +14dBu

Sensitivity: line-40 to +14dBu

2-track: 2 x RCA in & out (-2dBu)

Effects: 16 program DSP (24-bit sigma-delta, 40kHz)

Output Impedance: <75 Ohms

Headphone Output: 6.3mm jack, 30-600 Ohms

Inputs: mic/line 10 x balanced XLRF/TRS jack

Dimensions: 475 x 320 x 107mm

Weight: 4.5kg
