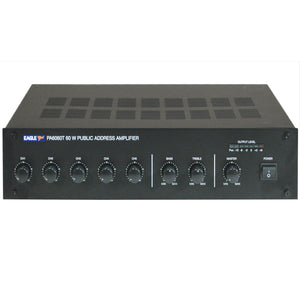

EAGLE PA6060T - 100V Line Mixer Amplifier 60W
The 6000 range of Eagle PA amplifiers offers versatile features and outstanding value for installed sound applications such as schools, offices, restaurants, shops, factories, houses of worship and hotels.
The unit features six inputs, two are balanced microphone inputs, two are auxiliary line inputs/microphone inputs and the final one is a microphone and telephone input.
There is a further Aux input and volume control on the rear. Channel 1 mic input has a VOX priority which will override Channel 3""6 and Line input signals (but not the Channel 2 input).
Other features include channel level, master volume controls and bass/treble controls. Speaker outputs consist of 100 V, 70 V and 8 Ohm.
An auxiliary line output can be used for recording or connection to an external booster/power amplifier.
Supplied with mounting brackets for 482 mm (19"") rack installation.
Ideal, professional solution for background music in public address systems
Outstanding value for schools, offices, restaurants, shops, factories, etc.
Controls include channel level, master volume and bass/treble
Supplied with rack mounting brackets
VOX priority on channel 1
Product Dimensions (mm): 90x420x310
Net weight (kg): 7.86
Auxillary Input: 150 mV, stereo 22k
Booster Output: 775 mV 600 Ohm
Connector: Screw terminals On Output
Current Rating (A): 5
DC Input (V): 24
Frequency Response (Hz): Mic: 60 - 15k ± 3dB
Inputs: Mic: 600 Ohm balanced
Mic Priority: Ch 1: 0.3 mV (Ch 1 can mute Ch 3-5, & Aux3)
Outputs: 100 V /70 V 8 Ohm
Power Input: 230 V AC @ 50 Hz
Power RMS (W): 60
Priority Microphone: Yes (1.5 mV/600 Ohm)
THD: Less than 2%
Vox Reduction (dB): 40
Weight (kg): 8.5
