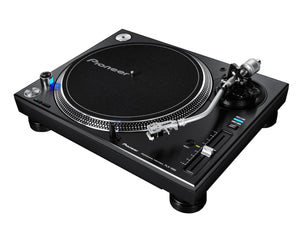

PIONEER PLX-1000 - PRO DJ High Torque S-Tonearm Direct Drive Turntable
The PLX-1000 is precision engineered for the booth, drawing on 50 years’ experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables. It’s solidly built for excellent vibration damping and ultra-precise, high-grade audio playback.
TURN THE TABLES: The high-torque direct drive ensures stable rotation and exceptional control – and it reaches 33⅓ rpm in just 0.3 seconds thanks to a starting torque of 4.5kg/cm (or more).
EXCELLENT SOUND DESIGN: The PLX-1000’s heavy-mass, die-cast zinc chassis prevents resonance and vibrations. The lower part of the unit is reinforced with 8mm-thick resin, plus 9mm-thick, vibration-damping material at the base. Plus the rubber-insulated tone arm reduces howling effects, while rubber and springs on the dampening parts of the insulator absorb external vibrations.
PICK UP THE PACE: Multi-tempo control lets you instantly pick up or slow down the track to ±8%, ±16% and ±50%, while a simple reset button instantly reverts to ±0%.
FLEXIBLE CONNECTIVITY: Interchangeable power and audio cables can be easily connected and replaced, and pro-grade gold-plated RCA jacks ensure low impedance and an amazing sound quality.
Specifications:
Included Accessories:
Turntable sheet
Slip mat and sheet
Dust cover
Head shell
Balance, sub and shell weights
Audio cable
Ground wire
Physical & Dimensions
Width: 453 mm
Height: 159 mm
Depth: 353 mm
Weight: 14.6 kg
Turntable
Drive Method: Quartz lock, servo-type, direct drive
Platter: Aluminium, die-casting diameter: 332 mm
Motor: 3-phase, brushless DC motor
Braking System: Electronic brake
Rotation Speed: 33⅓-45 rpm
Rotation Adjustment Range: ±8, ±16, ±50 %
Wow and Flutter: < 0.01 % (Measured by obtaining signal from built-in frequency generator of motor assembly.)
Signal-to-Noise Ratio: 70 dB
Starting Torque: > 4.5 kgf・cm
Start Time: Within 0.3 sec (at 33⅓ rpm)
Tone Arm
Arm Type: Universal type S-shape tone arm
Gimbal-supported type bearing structure
Static balance type
Overhang: 15 mm
Effective Length: 230 mm
Tracking Error: Within 3°
Height Adjustment Range: 6 mm
Stylus Pressure Variable Range: 0-4 g (1 scale 0.1 g)
Single Cartridge Weight: 3.5-13 g
Terminals
Outputs: 1 ANALOGUE (RCA)
