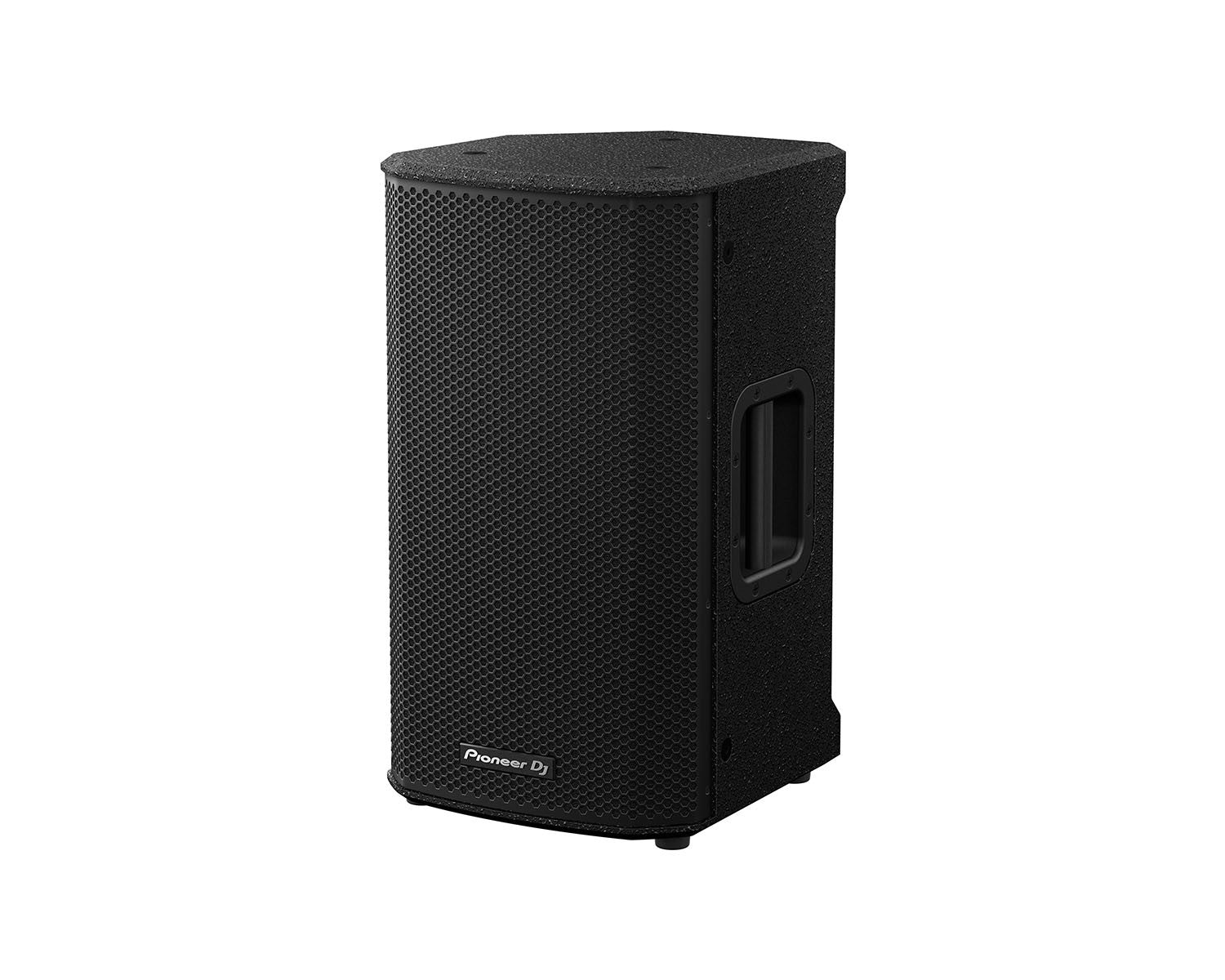

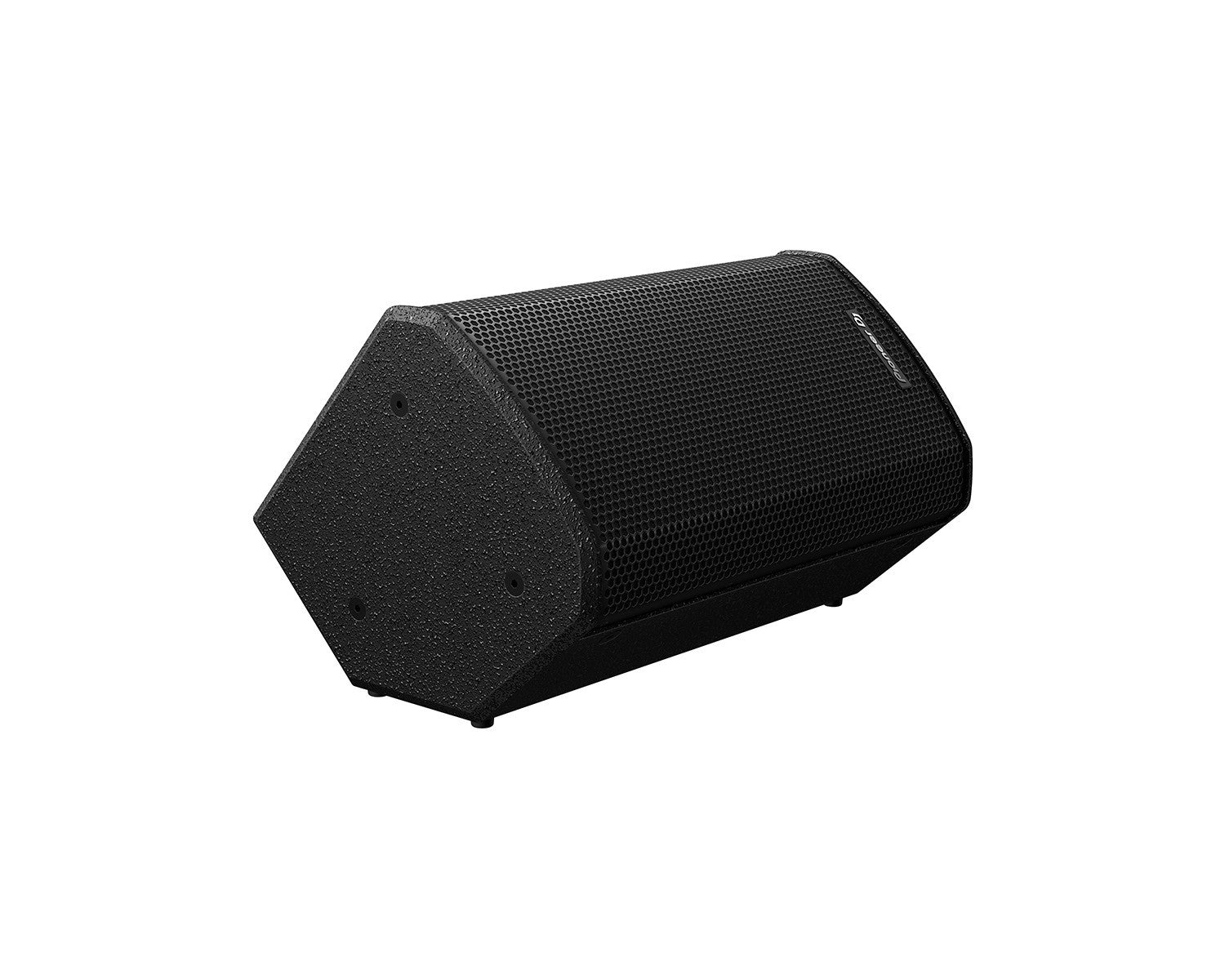

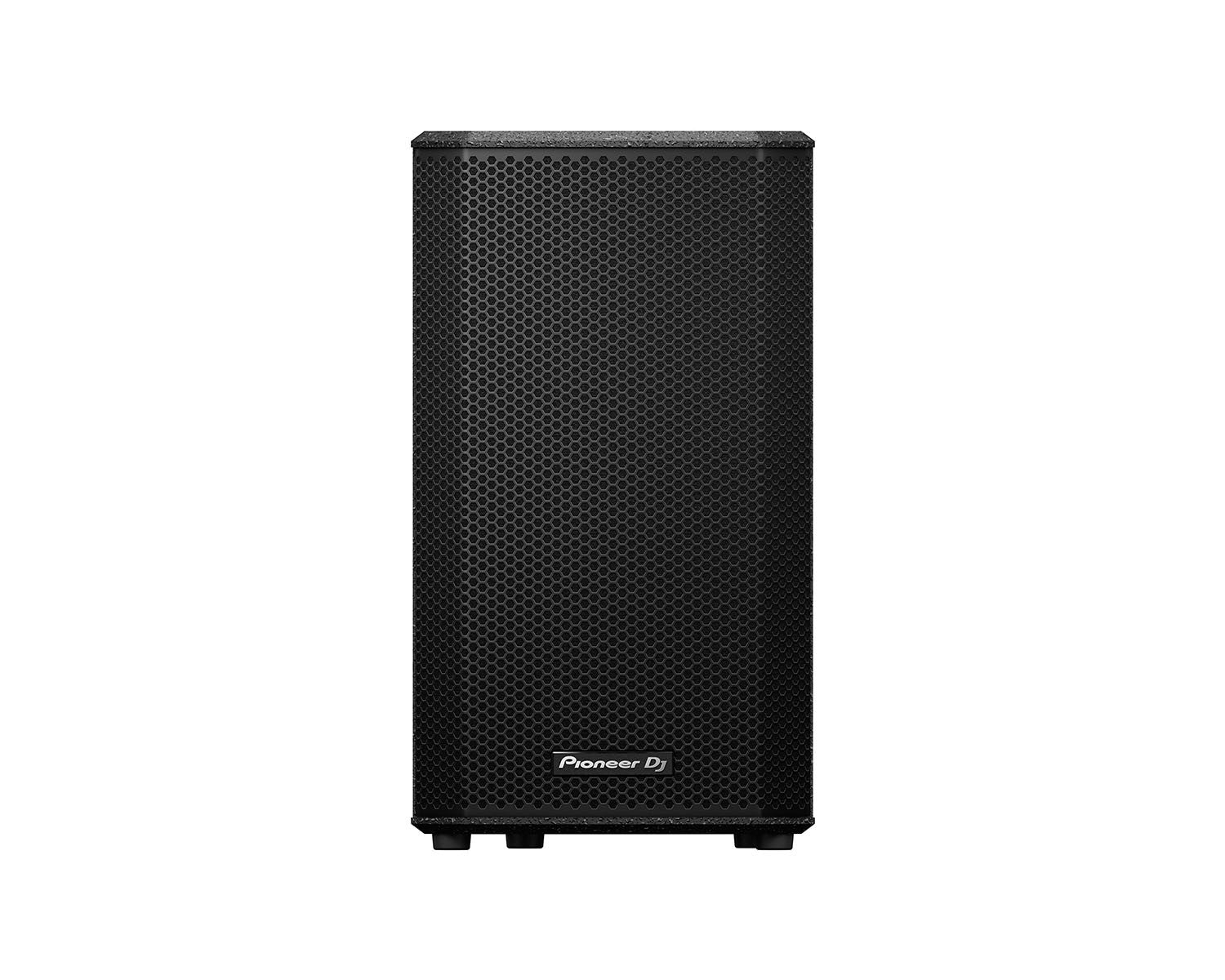

Pioneer XPRS102 - 10" 2-Way Active PA Speaker with Powersoft Class-D Amp

  • £699.00
    Unit price per
Shipping calculated at checkout.

The XPRS102 is a full-range speaker featuring class D 2000 W amplification for a powerful and premier audio experience. This speaker series is ideal for anyone who needs a versatile, robust, and high-quality sound system. It’s perfect for mobile DJs, live sound, houses of worship, and rental and fixed installations, among many other users and settings.

0 inch 2-way active loudspeaker
Max SPL: 129 dB
10” Woofer
2.5” Voice Coil
Powerful Class D Amplification / High‑Quality, Robust Build
Four DSP Presets + 16 User Settings / Full‑Range Speaker Design


Type: 10 inch 2-way active loudspeaker
Amplifier Output:
Class D
2000W peak

Supported voltages: 110 V to 240 V (50 Hz/60 Hz)
Power consumption: 800 W
Frequency Range: 50 - 20000 Hz

System characteristic
DSP modes:
Factory Presets (4 types)
Sub Setting (Sub Setting menu is for selecting the high-pass frequency or matching subwoofer)
EQ (4-band equalizer)
User Programs (16 presets)

DSP presets modes:
Factory presets:

Maximum Sound Pressure: 129 dB
Cross Over Frequency: 2 kHz

MIC / LINE x 1 (Combo)
HI-Z / LINE x 1 (Combo)
3.5 mm stereo mini jack x 1 (Unbalanced input)
Outputs: MIX (XLR)

10 inch ferrite LF cone driver
1.75 inch compression driver
Finish: Black paint, Rubber feet

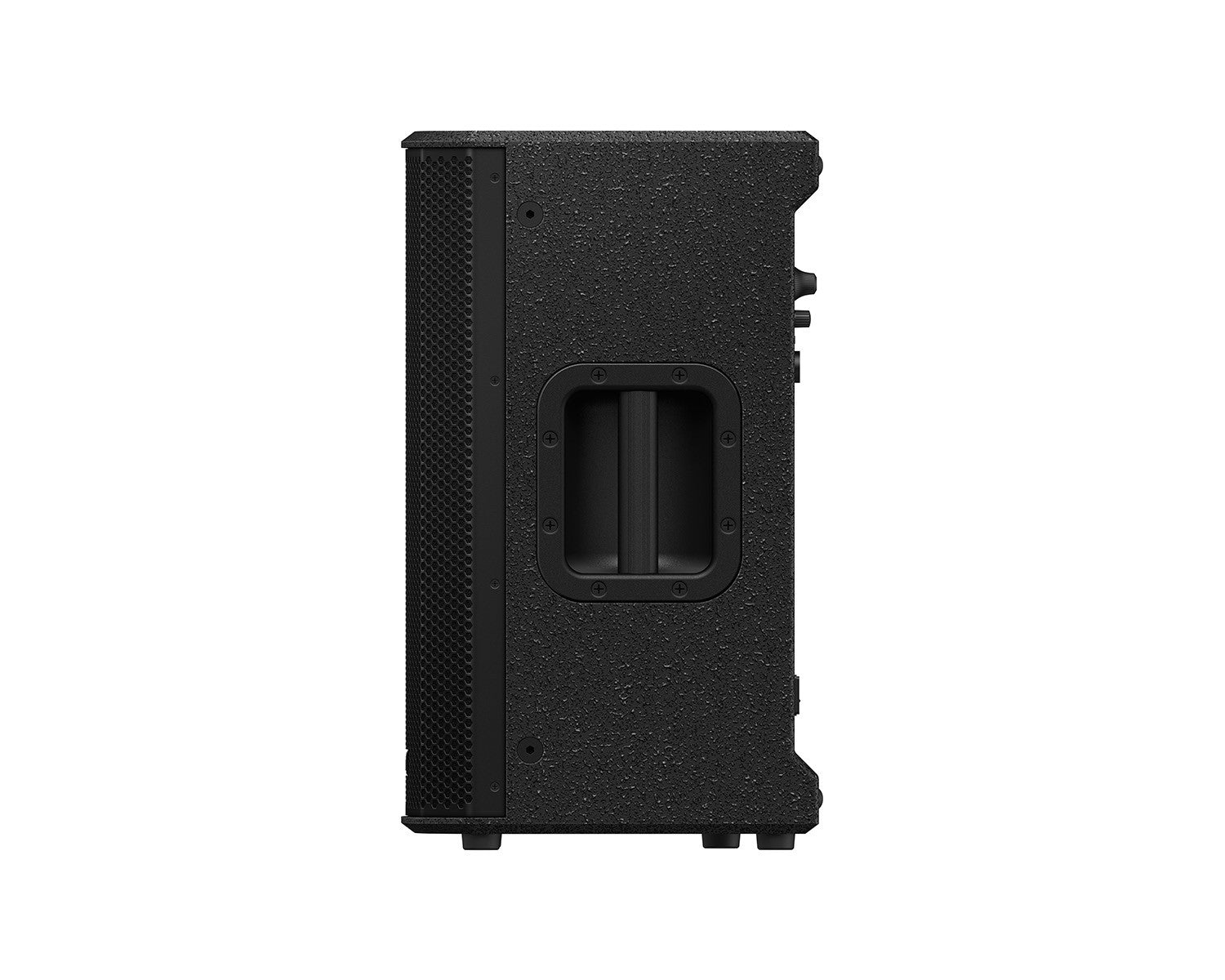

Handle: 1 metal handle (on left side)
Pole socket: 35 mm socket
Rigging point: 10x M10
Enclosure: Plywood (TSCA)

Amplifier Protection:
Thermal limiting
Digital Limiter
Digital compressor
Driver Protection: Short circuit protection

Power unit Protection:
Primary AC mains overcurrent protection
Primary AC mains overvoltage protection

Physical & Dimensions
Width: 299 mm
Height: 520 mm
Depth: 310 mm
Weight: 15.5 kg
