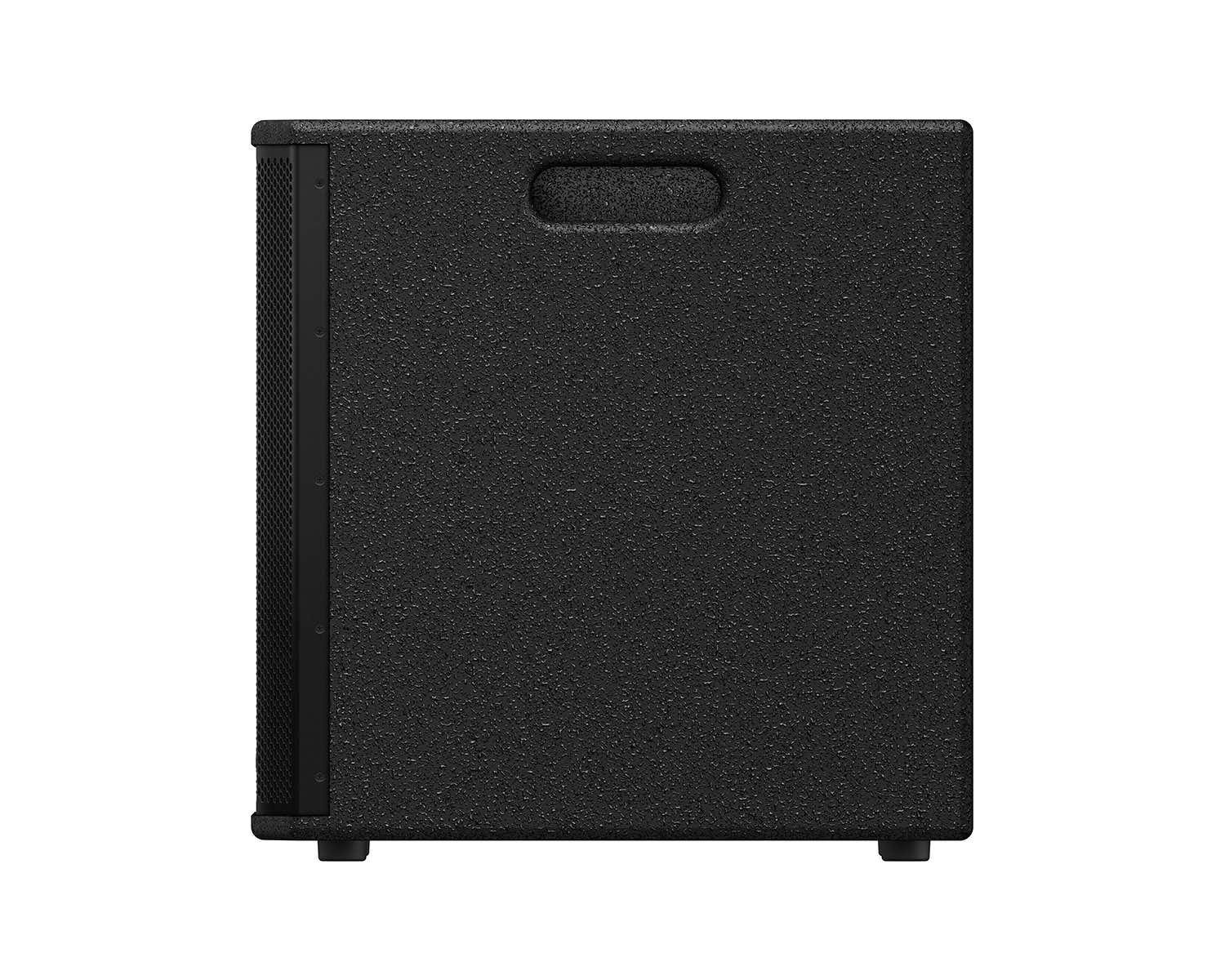

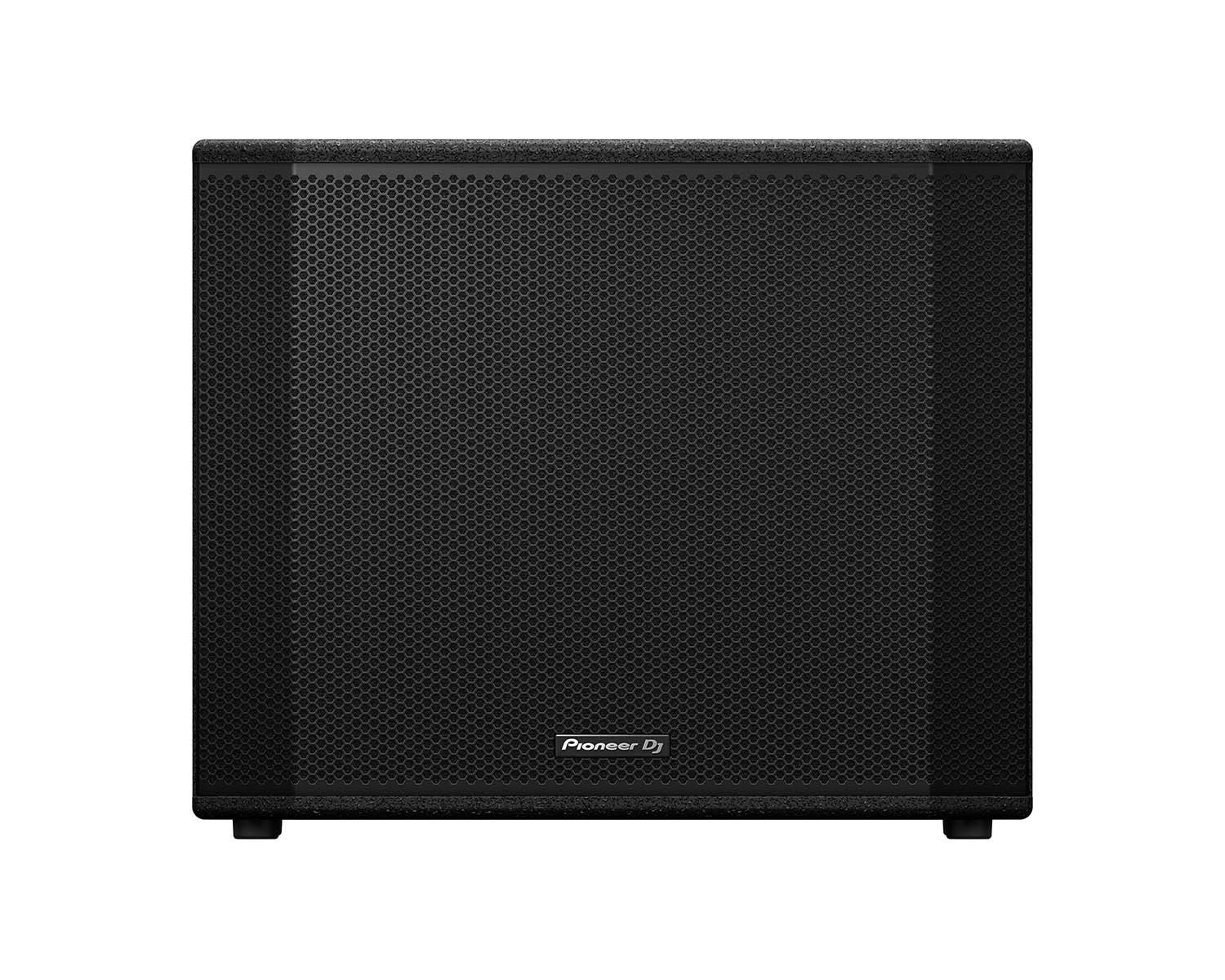

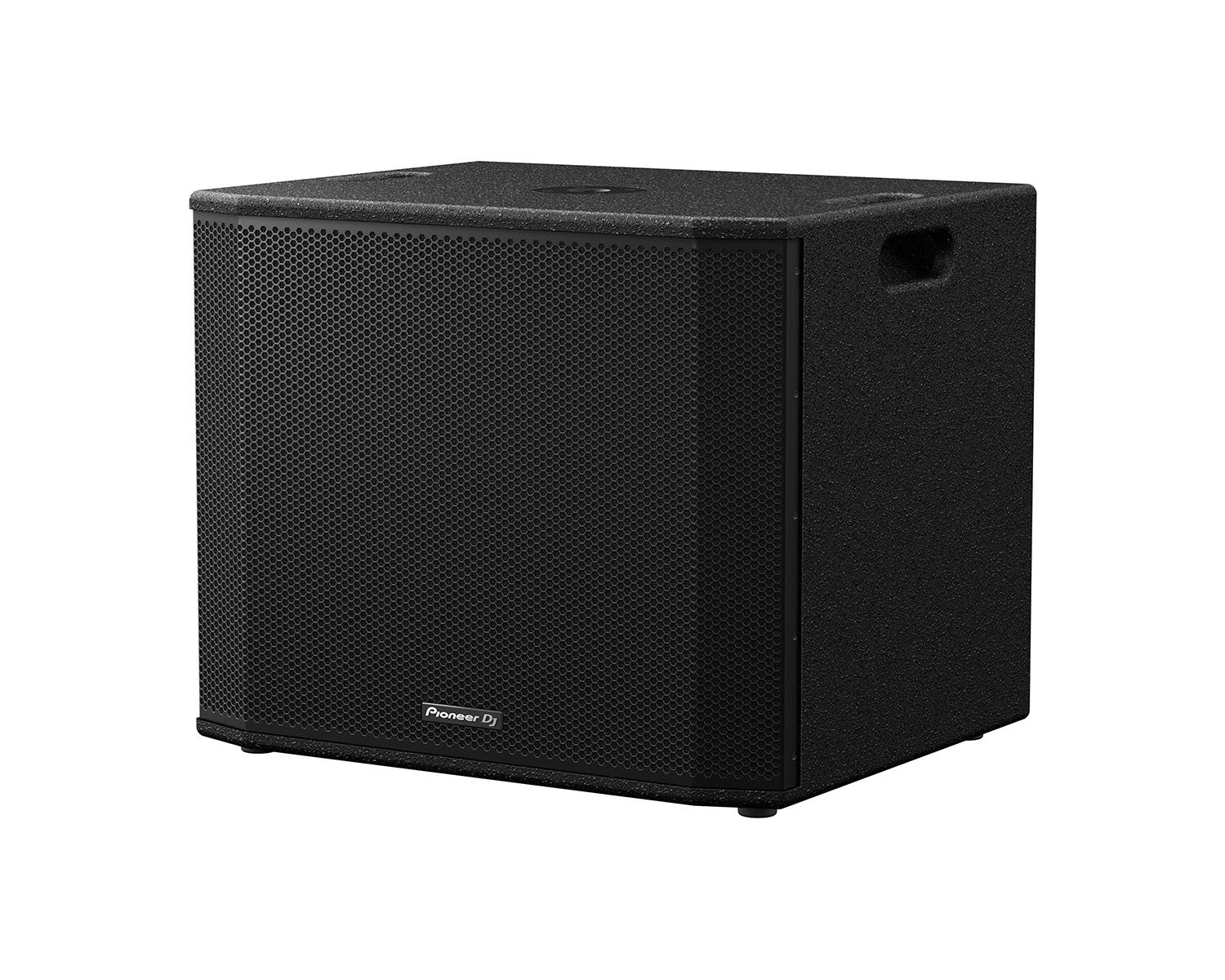

Pioneer XPRS1182S - 18" Active Subwoofer with Powersoft Class-D Amp
18" Active Vented Subwoofer
3" Voice Coil with Long Excursion
4000W Peak
Powerful Class D Amplification / High‑Quality, Robust Build
Three DSP Modes / Accurate Audio
Performance / Frequency Response
Specifications:
Type: 18 inch active subwoofer
Amplifier Output:
Class D
4000W peak
Supported voltages: 110 V to 240 V (50 Hz/60 Hz)
Power consumption: 800 W
Frequency Range: 40 - 120 Hz
System characteristic
DSP modes:
EQ Mode Select (3 DSP Preset Modes(Switch))
LPF
POLARITY
DSP presets modes:
BOOST
EXTENDED LF
NORMAL
Maximum Sound Pressure: 130 dB

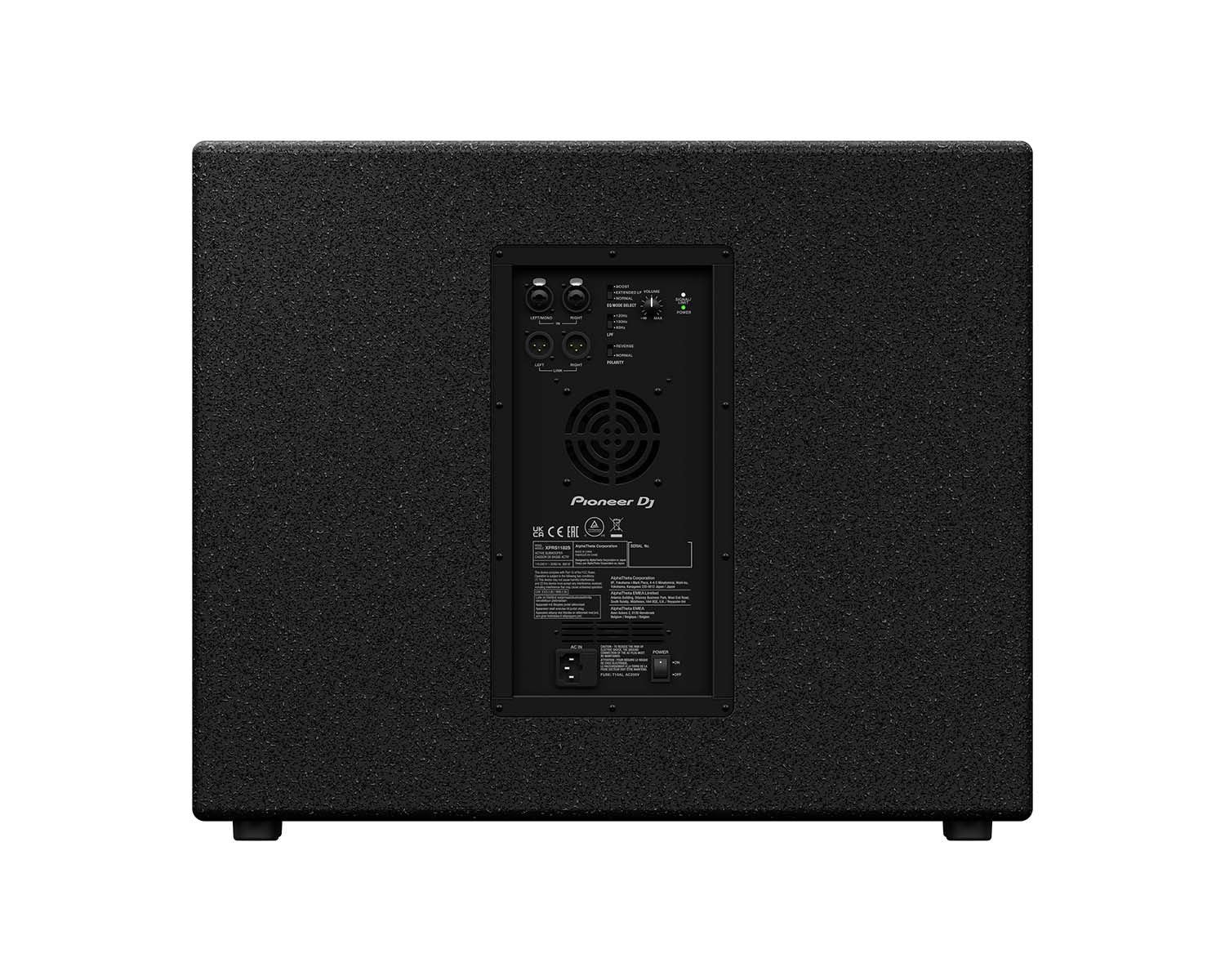

Terminals
Inputs:
Left Mono (Combo)
Right (Combo)
Outputs:
Left Mono (XLR)
Right (XLR)
Speaker
Driver: 18" ferrite LF cone driver
Finish: Black paint, Rubber feet
Handle: 2 (on both sides)
Pole socket: 35 mm socket
Enclosure: Plywood (TSCA)
Protection
Amplifier Protection:
Thermal limiting
Digital compressor
Driver Protection: Short circuit protection
Power unit Protection:
Primary AC mains overcurrent protection
Primary AC mains overvoltage protection
Physical & Dimensions
Width: 661 mm
Height: 535 mm
Depth: 536.5 mm
Weight: 32.3 kg
