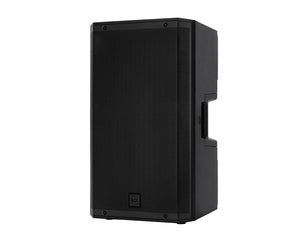

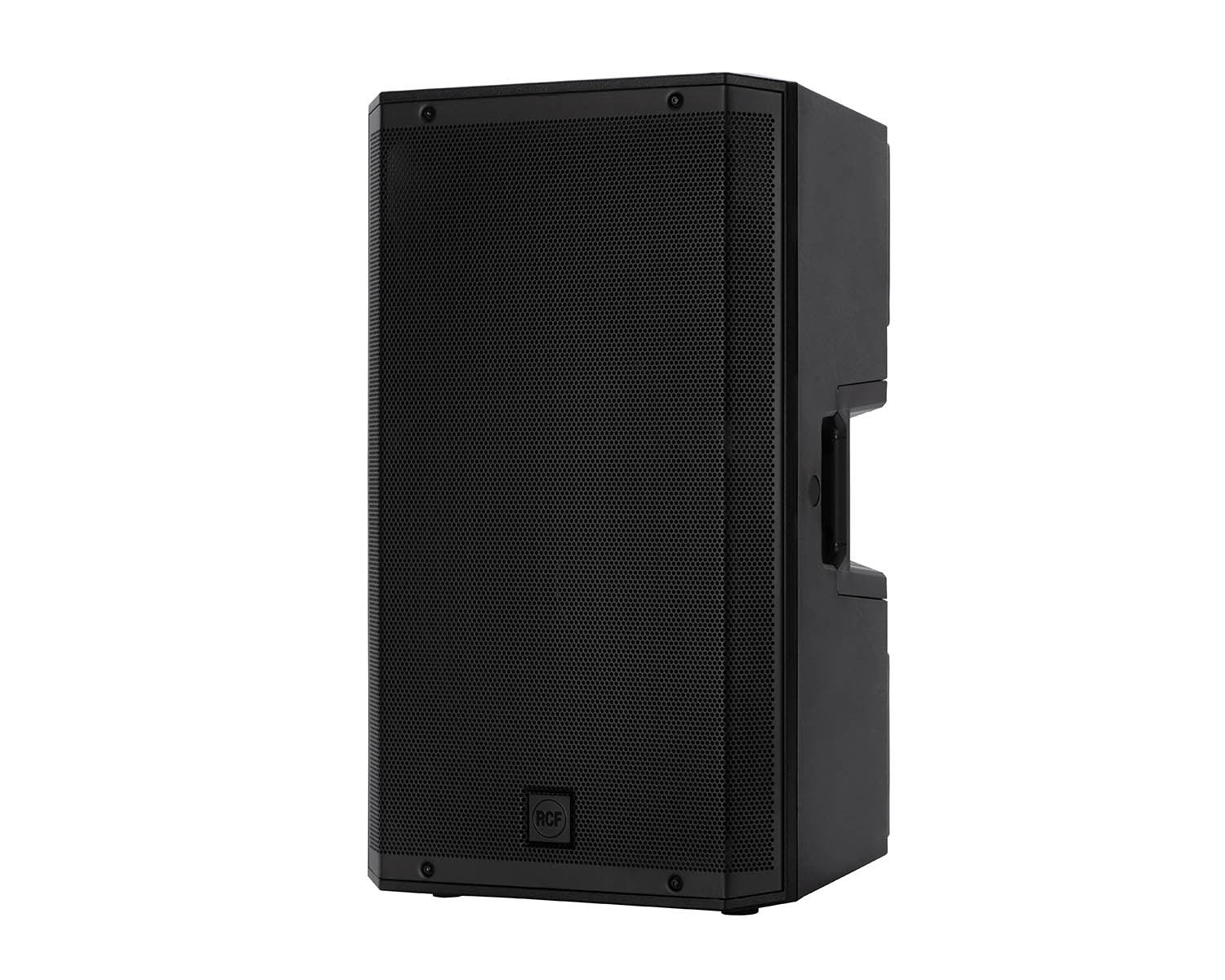

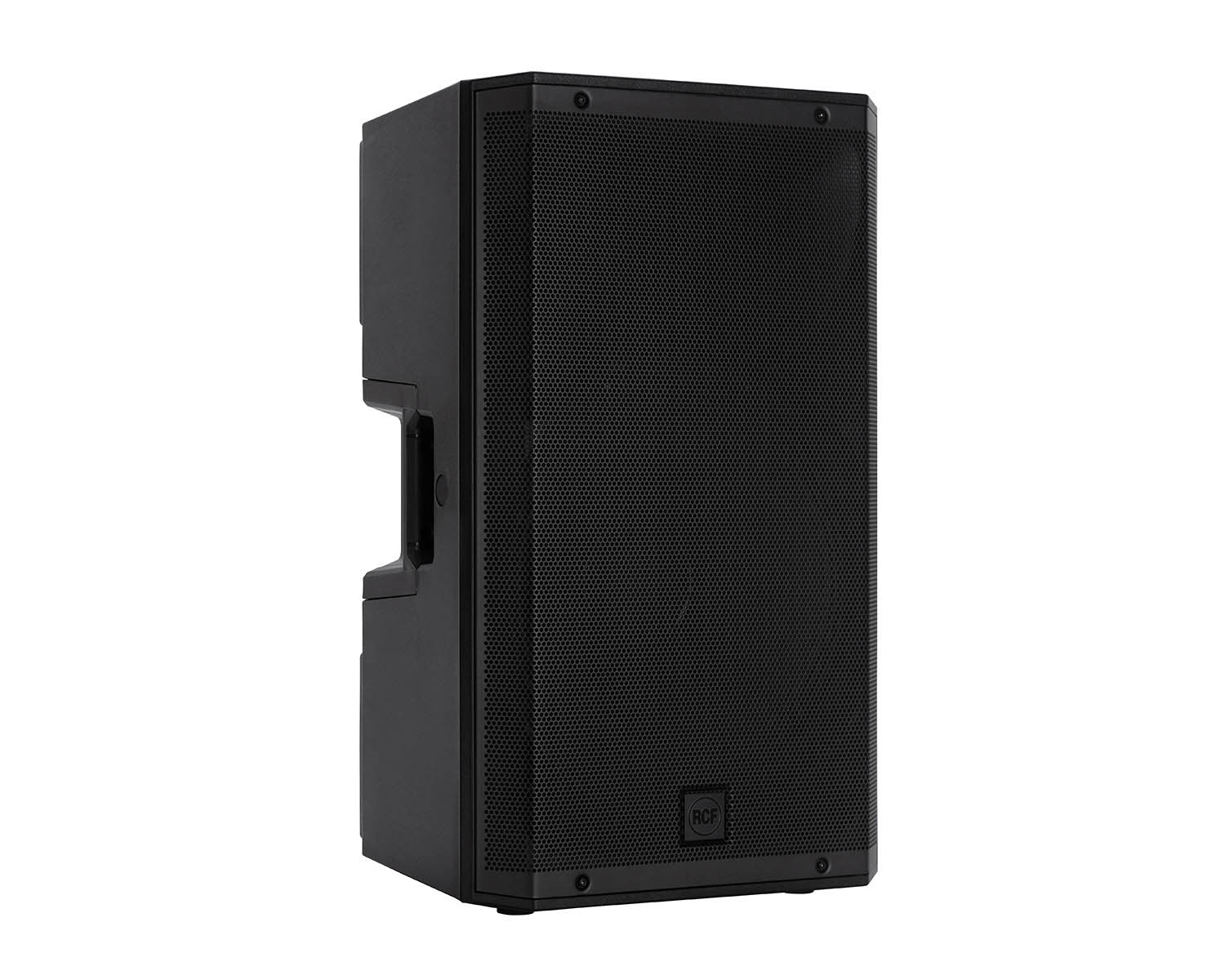

RCF ART 915-AX - 15" +1.75" Active 2-Way Speaker System + Bluetooth

  • £929.00
    Unit price per
Shipping calculated at checkout.


The ART 9 AX is an incredibly flexible tool for live events and presentations or venues like leisure centres or schools looking for a flexible solution without compromising on power. The ART 9 AX range comes fitted with the same cabinet, construction and advanced DSP, FiRPHASE and Bass Motion Control as the ART 9 series. The AX series features 6-in, 2-out stereo digital mixer & output processing as well as Bluetooth® and a Colour display with capacitive touch for Audio Streaming and Control.

The advanced woofer excursion management increases linearity and improves bass punch with a radical new approach. BMC extends the lowest audible frequency without affecting the transducer’s stability, limiting over-excursions for greater reliability and superior performance at high volume levels.

With 2100 Watts of power, the 2-channel ART 9 Class-D amplifier is 50% more powerful than previous models, able to manage extremely high sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss.

2100W Class-D Bi-Amplification
Up to 50 ÷ 20000 Hz linear frequency response
Wide 100° x 60° Constant Directivity
Up to 1800 Hz Crossover Frequency
True Resistive Waveguide for superb, distortion-free coverage
Road-proof Cabinet with M-Brace Reinforcement
Bass Motion Control and FiRPHASE processing
Bluetooth® for Audio Streaming and Control
Smartphone app for remote control
6-in, 2-out stereo digital mixer and output processing
Internal digital mixer and crossover for RCF subwoofers

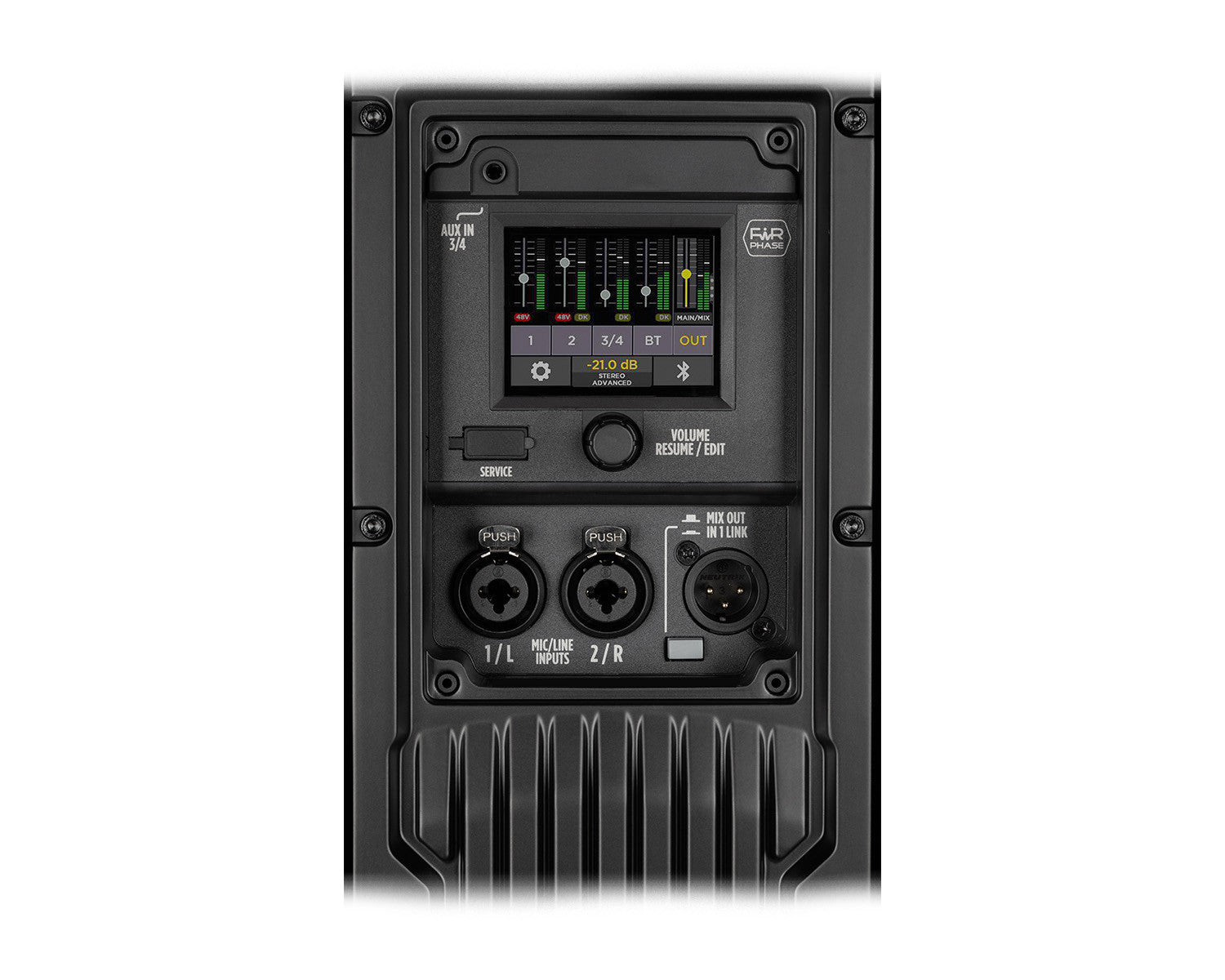

Colour display with capacitive touch
131 dB SPL
15" Woofer

Specifications:

Processor section
Controls: Colour touch panel, data entry/volume encoder, dedicated App for iOS and Android.

Electronic specifications
Frequency Response: 20 Hz ÷ 20 kHz
THD+N, 20dB gain, 0dBu out 0.005% A-Weighted

Processing
Processing Channels: 6
Signal Processing: 24 Bit
A/D-D/A conversion: 32 Bit @ 48.0 kHz
Dynamic Range: 110

Inputs
Mic: 2
Remote controlled storable gain: Yes
Gain Range: 0 dB ÷ 42 dB
Input Noise Level: -114 dBu A-Weighted
Mic Inputs Impedance: 6 kohm
Low Cut: 20 Hz ÷ 400 Hz
Phantom Power +48V: Yes
Mono Line: 2
Gain Selection: 0 dB ÷ 22 dB
Line Input Impedance: 21 kohm
A/D Dynamic range: 114 dB
Stereo Line: 1
Gain Selection: 0 dB ÷ 10 dB
Stereo Line Input Impedence: 13 kohm

Outputs
Main MIX: 1

Outputs specifications
Main Out Impedance: 150 ohm
Main Out Level: 22 dBu
D/A Dynamic Range: 114 dB

Compressors
RCF Compressors: Compressors on MIC/LINE CH1 & CH2 inputs

EQ
Input Channels EQ: 2 Shelving 1
Description: 3 Band EQ: High and Low band shelving, MID band peak on IN
5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on Amplifier and MAIN output

Internal Effects
Send Effects: 1

Mastering processors
Main OUT type: Mix out, Crossover out with RCF Subwoofers presets, Stereo output, CH1 Link out

Acoustical specifications
Frequency Response: 45 Hz ÷ 20 kHz
Max SPL @ 1m: 131 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 60°

Transducers
Compression Driver: 1'', 1.75'' v.c
Woofer: 15'', 2.5'' v.c

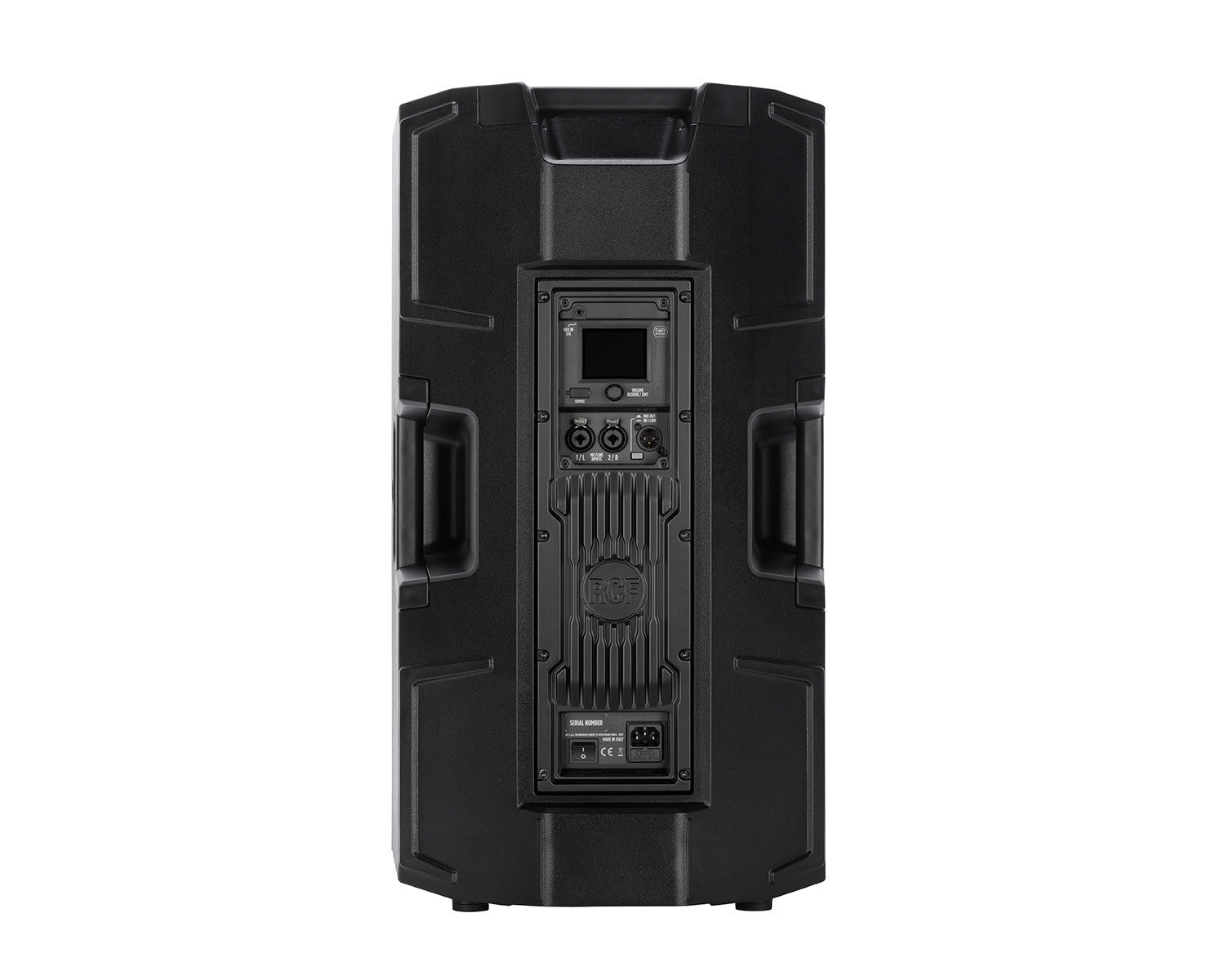

Input/Output section
Input signal: bal/unbal
Input connectors: XLR, Jack

Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu

Processor section
Crossover Frequencies: 1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Linear, Boost, Stage, Volume

Power section
Total Power: 2100 W Peak
High frequencies: 700 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Connections: VDE
Standard compliance
CE marking: Yes

Physical & Dimensions
Cabinet/Case Material: PP Composite
Hardware: 1 x M10 Top, 1 x M10 each side

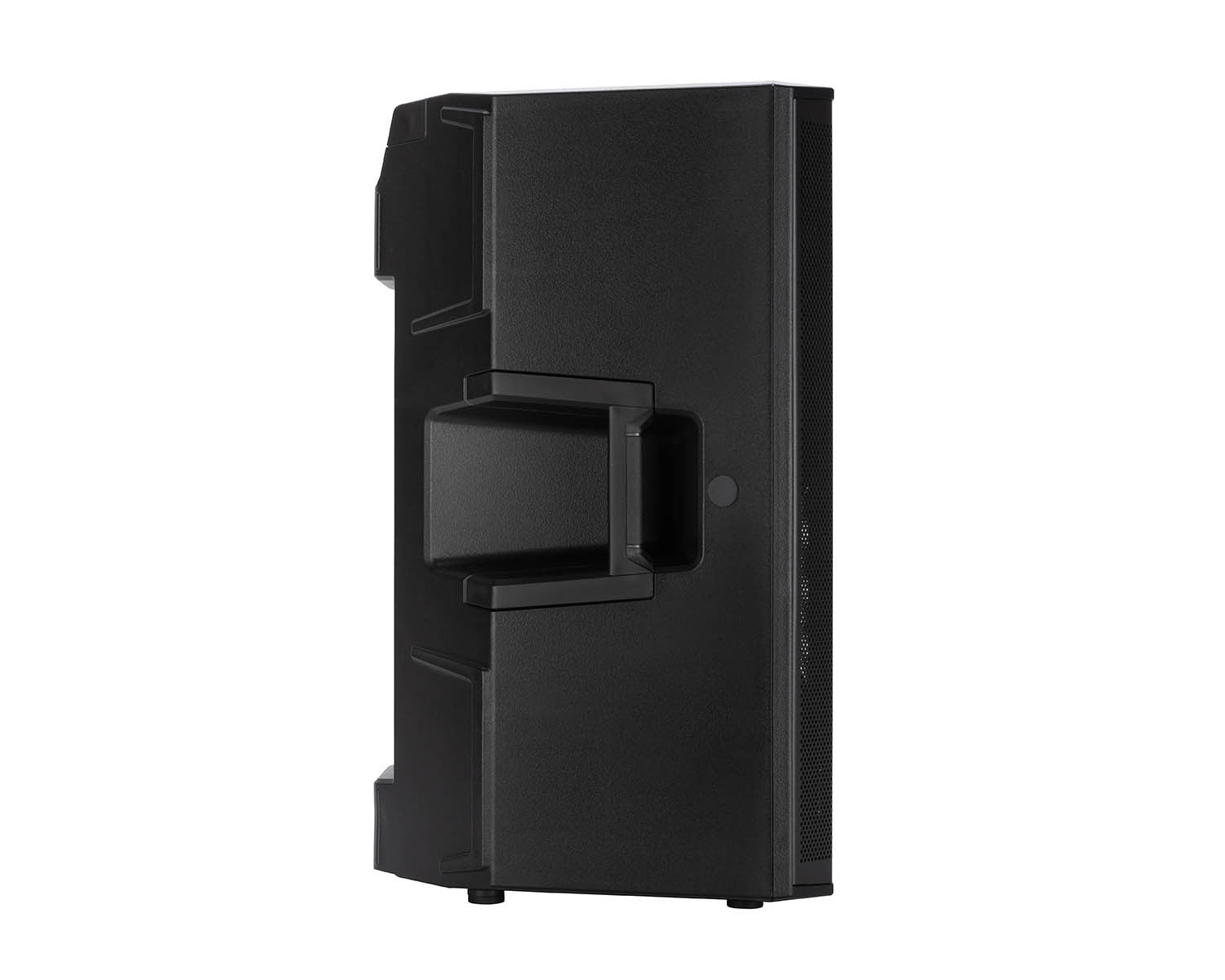

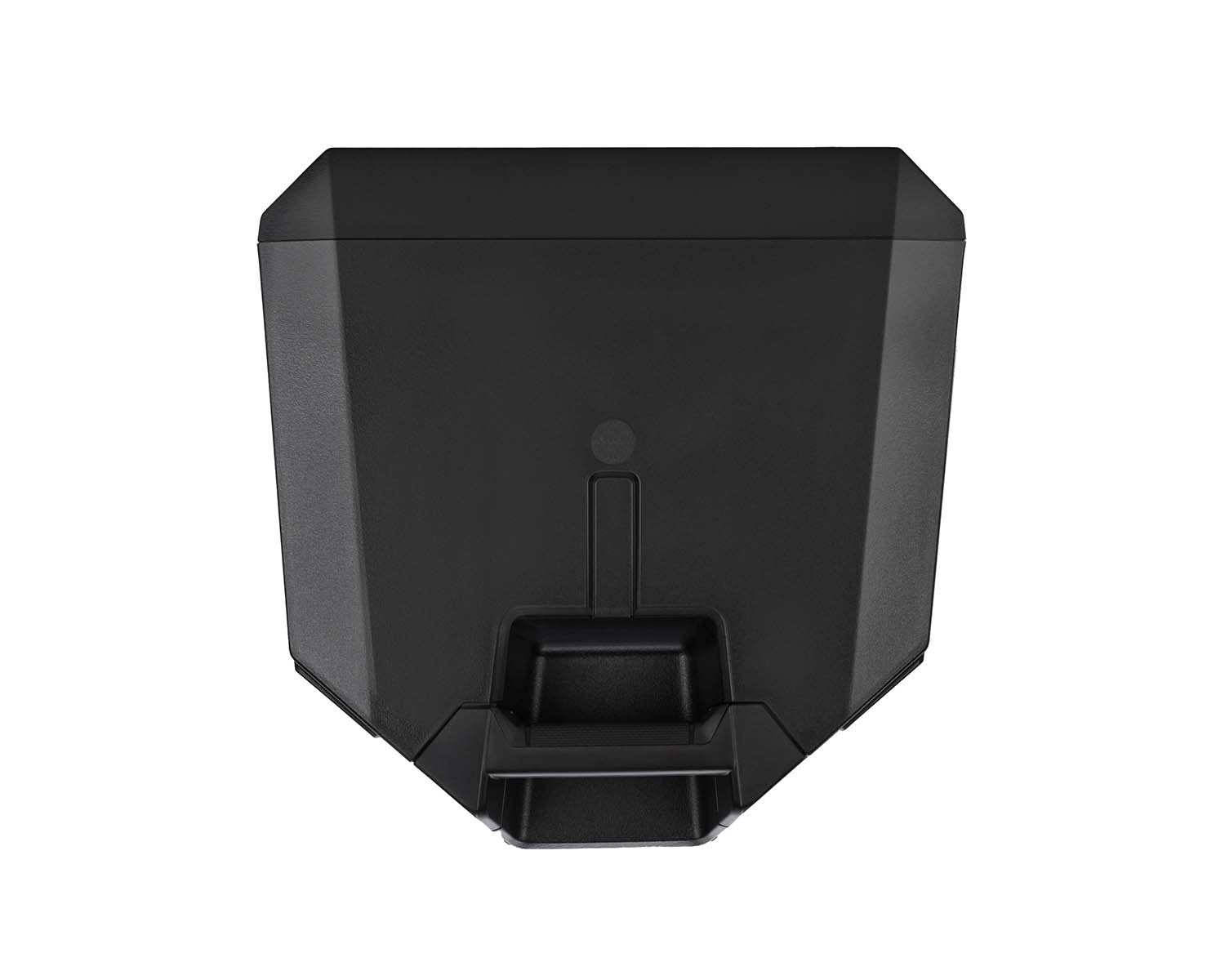

Handles: 1 Top , 1 each side

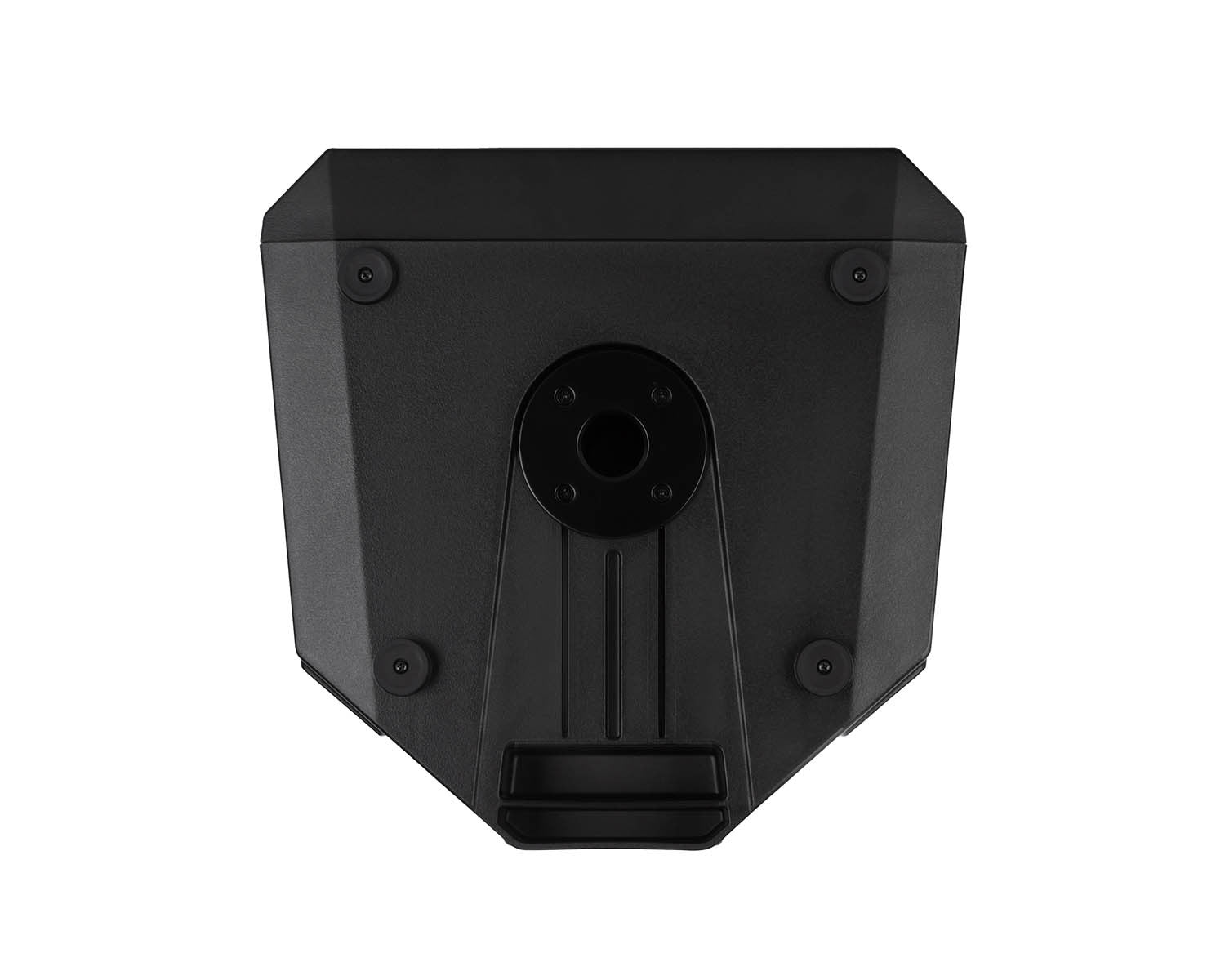

Pole mount/Cap: Yes

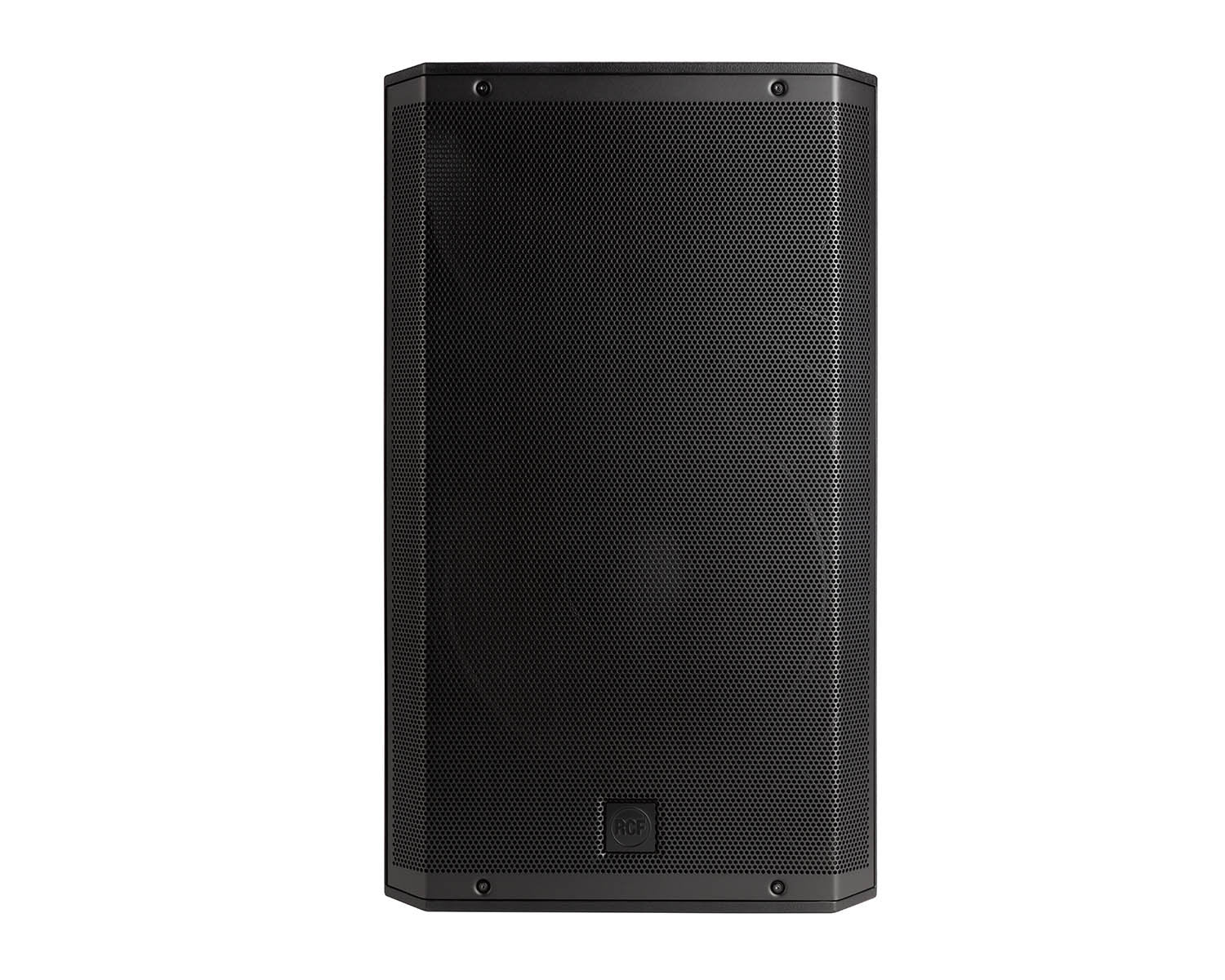

Grille: Steel
Colour: Black
Height: 717 mm / 28.23”
Width: 415 mm / 16.34”
Depth: 410 mm / 16.14”
Weight: 22 kg / 48.5 lbs
