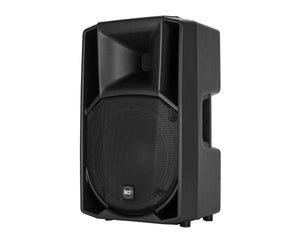

RCF ART712A MK4 - 12" Active 2-Way Loudspeaker 700W Black
129 dB Max SPL
1400 WATT 2-way peak power
Innovative DSP Processing
1" Compression Driver, 1.75" v.c.
12" Woofer
90°x60°, wide dispersion constant directivity horn
FiRPHASE Technology
Specifications:
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB: 50 Hz ÷ 20000 Hz
Max SPL: 129 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 60°
Compression Driver: 1", 1.75" v.c.
Woofer: 12", 2.5" v.c.
INPUT/OUTPUT SECTION
Input signal: bal / unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu / +4 dBu
PROCESSOR SECTION
Crossover frequencies: 1600 Hz
Protections: Thermal, rms
Limiter: Soft limiter
Controls: Volume, Boost, Mic/Line
AMPLIFIER SPECIFICATIONS
Total power: 1400 W PEAK
High frequencies: 400 W PEAK
Low frequencies: 1000 W PEAK
Total power: 700 W RMS
High frequencies: 200 W RMS
Low frequencies: 500 W RMS
Cooling: Convection / forced
Connections: VDE connector in
CABINET
Cabinet Material: Composite PP
Hardware: 2xM10 flying p .
Handles: 2 side, 1 top
Pole Mount/Cap: Yes
Colour: Black
Physical & Dimensions
Height: 637mm
Width: 387mm
Depth: 363mm
Weight: 18kg
