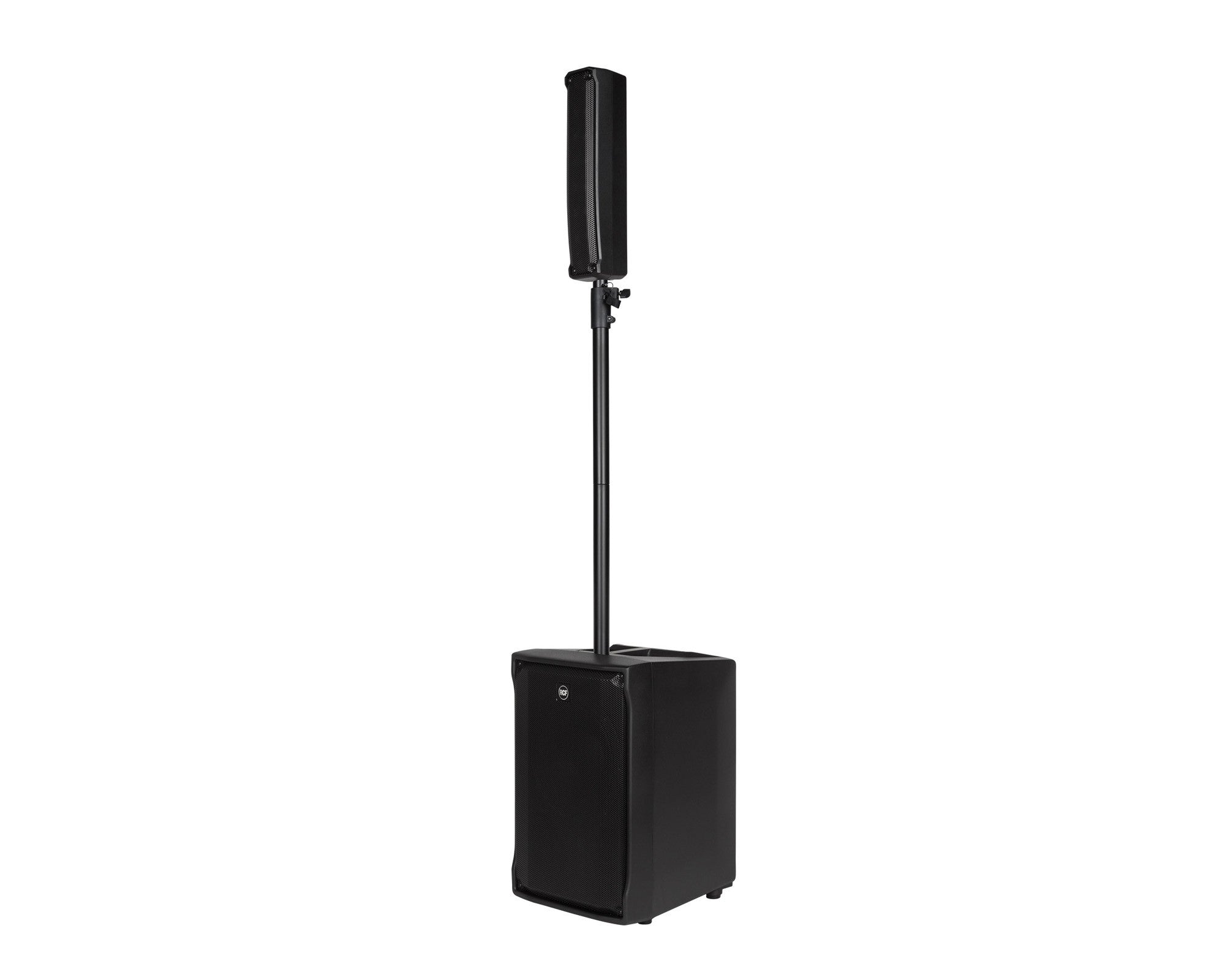

RCF EVOXJ8 - 8x2"+12" Active Composite 2-Way Column PA 700W Black

  • £789.00
    Unit price per
Shipping calculated at checkout.

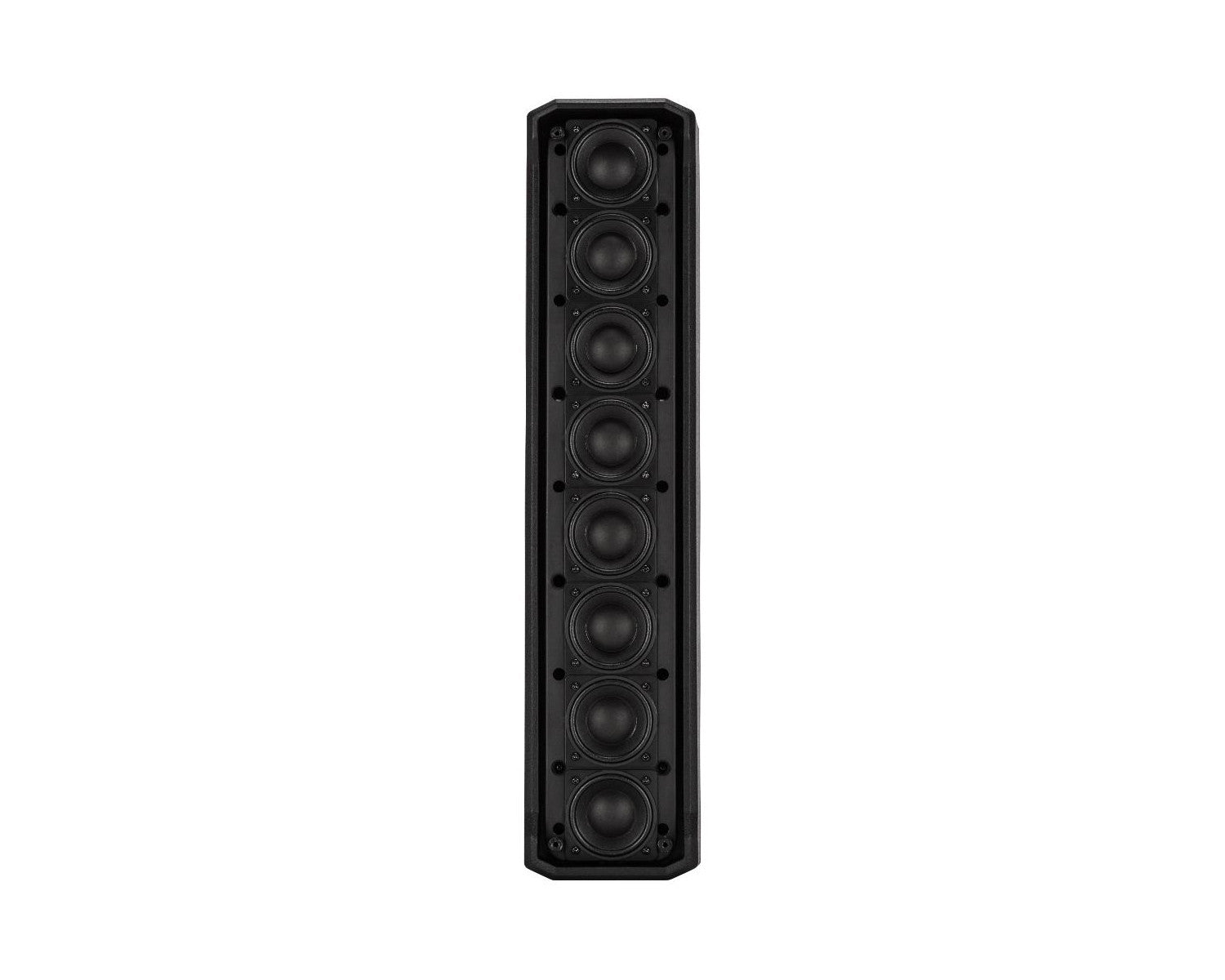

The RCF J8 features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.

128 dB Max SPL
1400 Watt 2-way peak power
DSP Processing with FiRPHASE

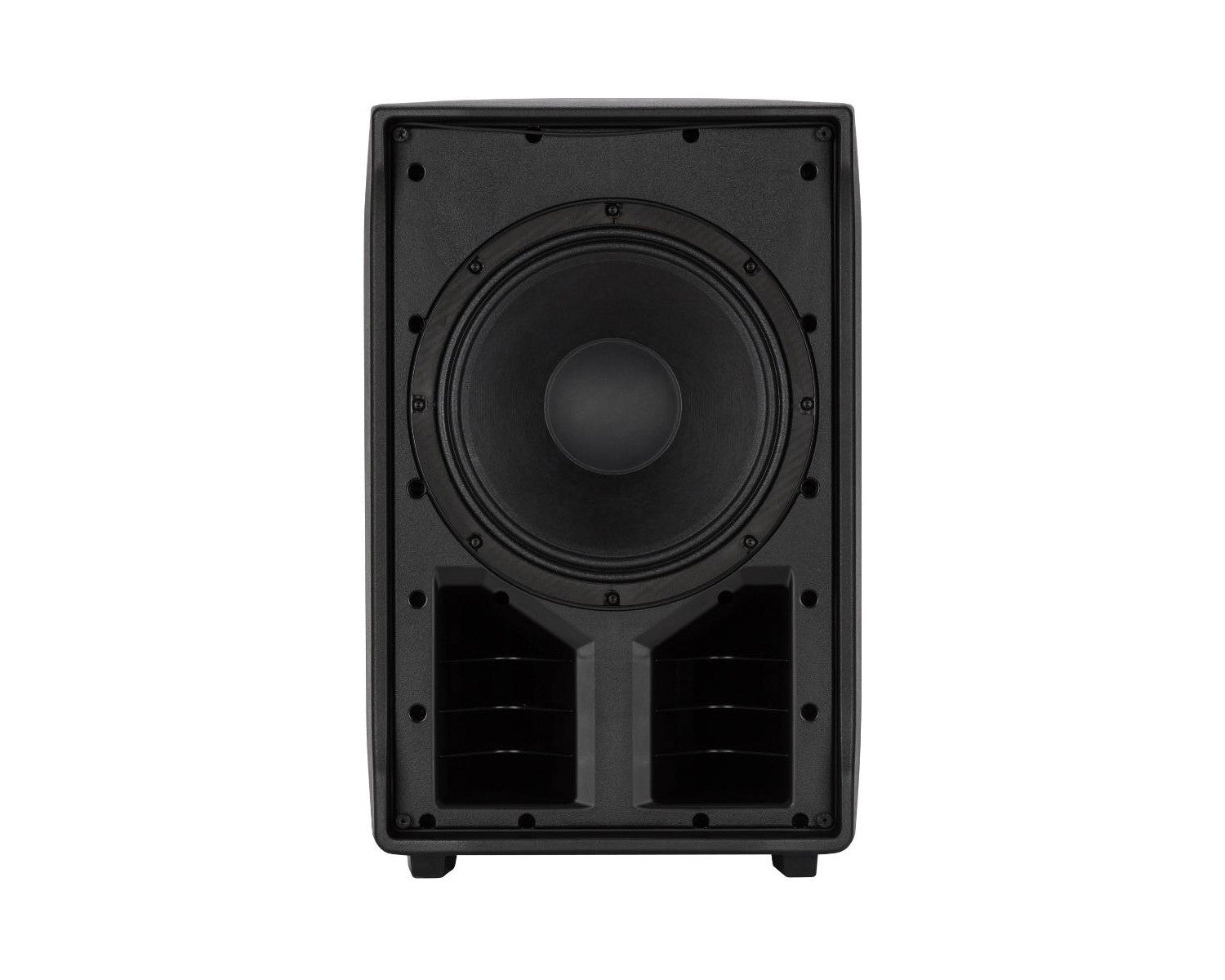

12" woofer, high power 2.5" voice coil
8 x 2" ultra compact fullrange 1.0" voice coil
Perfect for Live Sound, Clubs and DJs, Corporate events, AV presentations


Acoustical Specifications
Frequency Response -3 dB: 40 Hz ÷ 20 Hz
Max SPL: 128 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 30°
Fullrange: 8 x 2.0'', 1.0'' v.c
Woofer:12'', 2.5'' v.c

Input/Output Section
Input signal: bal/unbal
Input connectors: XRL, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu

Processor Section
Crossover frequencies: 220 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Boost, Mic/Line

Amplifier Specifications
Total power: 1400 W PEAK
High frequencies: 400 W PEAK
Low frequencies: 1000 W PEAK
Total power: 700 W RMS
High frequencies: 200 W RMS
Low frequencies: 500 W RMS
Connections: Convection

Cabinet Material: PP Composite
Handles: 1 Top
Pole Mount/Cap: Yes
Grille: steel
Colour: Black

Physical & Dimensions
Height: 623mm
Width: 400mm
Depth: 460mm
Weight: 23.8kg
