RCF PL6X - 6" 2-Way Coaxial Ceiling Speaker 12W 100V IP44 White

  • £47.99
    Unit price per
Shipping calculated at checkout.

The PL6X is a ceiling speakers featuring elegant and innovative design that can be flush-mounted in false ceilings or panels. Incorporating a 160 mm (6”) loudspeaker. Both have a coaxial 25 mm (1”) tweeter placed on a bridge support.

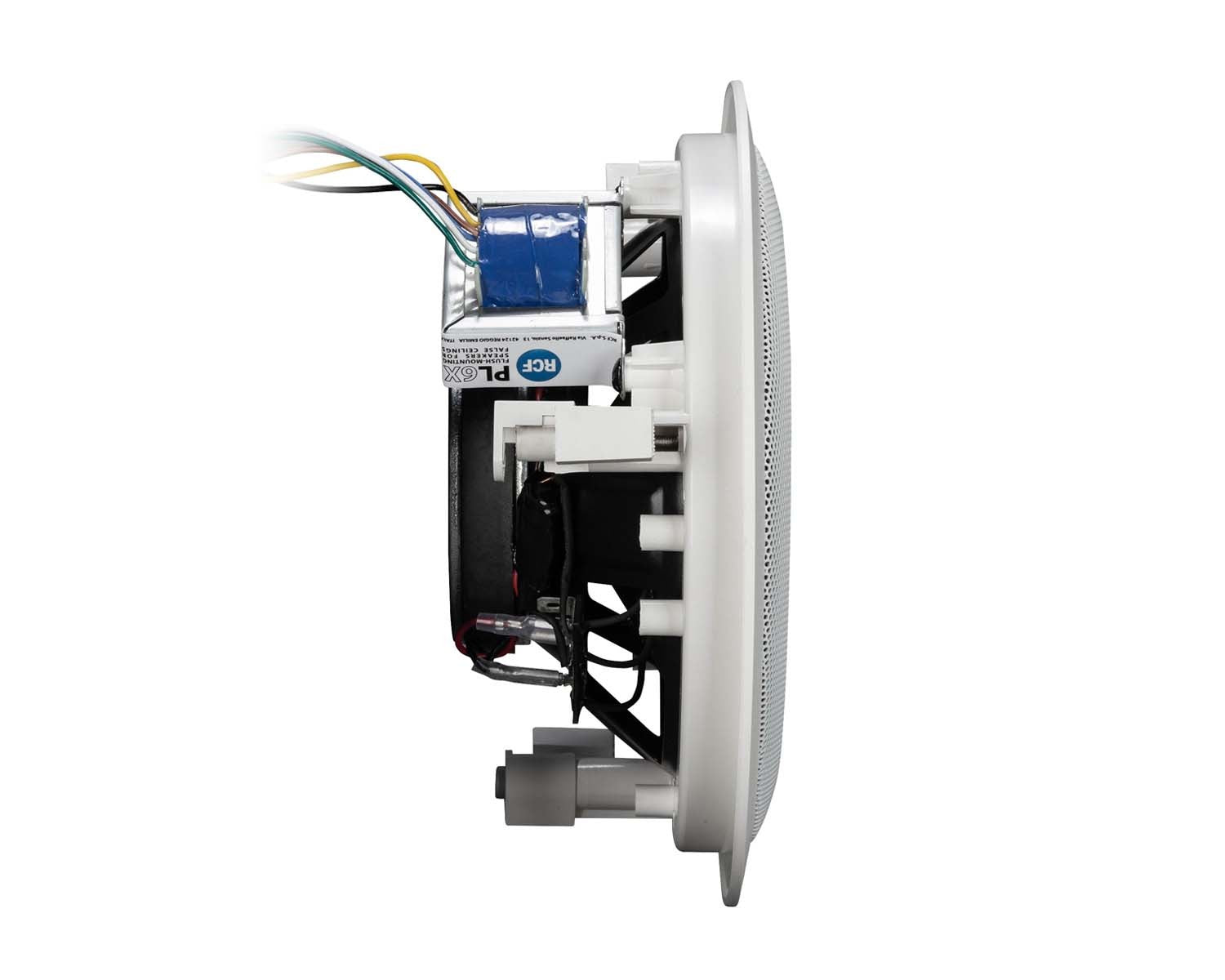

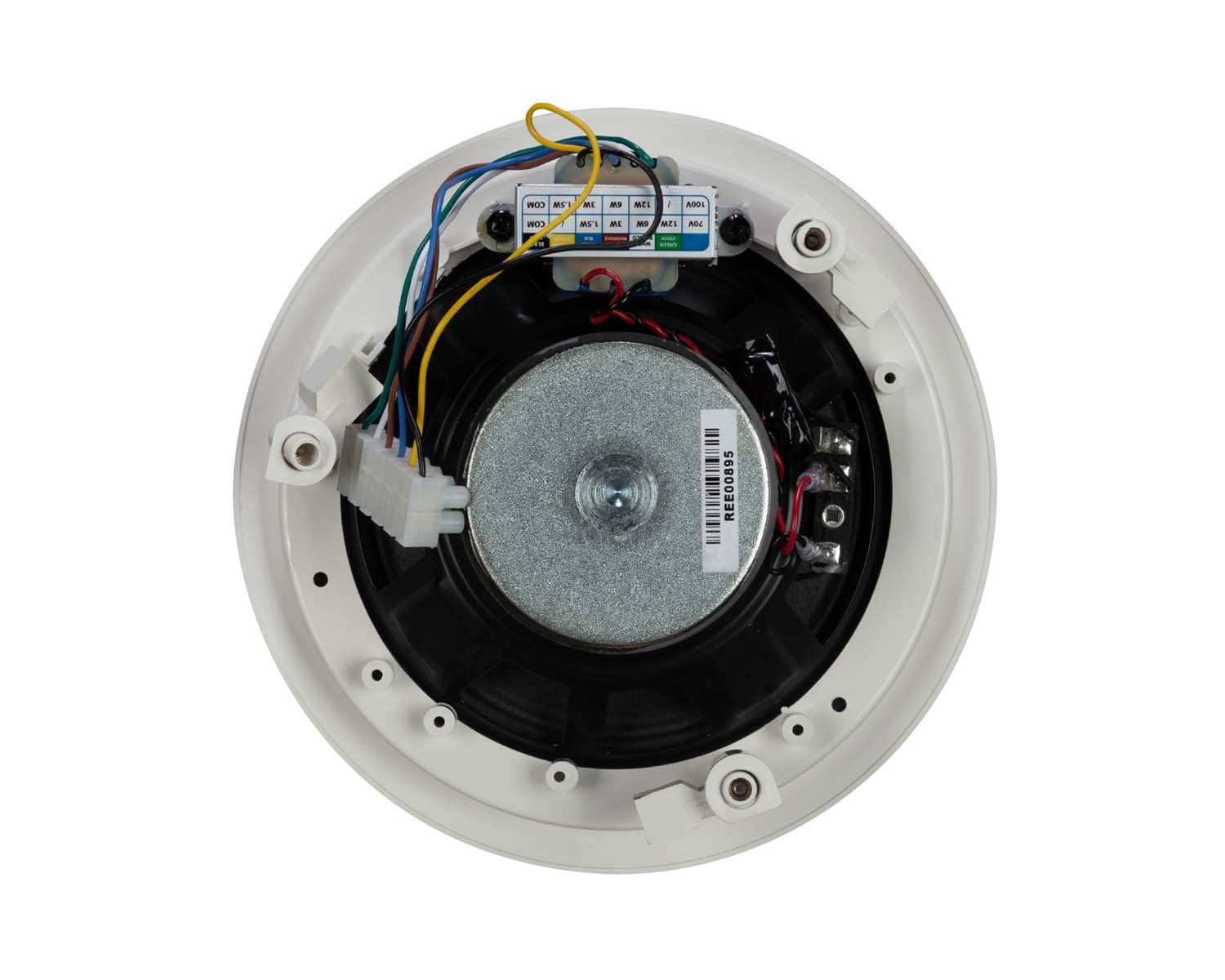

The speakers are equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make it possible to select the output power from among several values.

Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.

Two way speaker system with dome tweeter recommended for speech and background-music reproduction
Music power/RMS: 24/12W
6" woofer with coaxial tweeter 1"
Low impedance (8Ω) or 100V
Built-in multi-tapped transformer for 100/70V constant voltage connection
Three hooks mounting system (no screws or other attachment elements)
Body in self-extinguishing (UL 94V-0) plastic and front metal grille RAL 9003 White
IP 44 protection


Acoustical Specifications
Type of speaker:Ceiling
Frequency Response:70 Hz ÷ 20 kHz
Max SPL @ 1m:106 dB
Horizontal coverage angle:100°
Vertical coverage angle:100°
Power Handling:12 W RMS
Peak Power Handling:24 W PEAK
System Sensitivity:92 dB
Impedance:8 Ω
Protections:IP 44


Input Section
Input connector:6 pin terminal block
Constant voltage:100 V / 70 V
Power Selection:12 - 6 - 3 W (100 V)

Hardware:Plastic material

Physical & Dimensions
Height: 73mm
Width: 204mm
Depth: 204mm
Weight: 1.28kg
